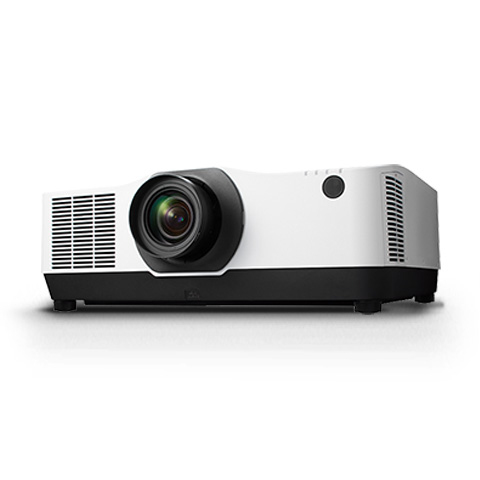

Sharp NP-PA1004UL-W data projector Standard throw projector 10000 ANSI lumens LCD WUXGA (1920x1200) Black, White
Sharp NP-PA1004UL-W, 10000 ANSI lumens, LCD, WUXGA (1920x1200), 3000000:1, 16:10, 1016 - 12700 mm (40 - 500")
Part NumberNP-PA1004UL-W
UPC0805736072976
MSRP
$32,205.00
Public MSRP in CAD. Your quoted price comes from an account manager.
Available to Order
Quantity
Get your price from a Dataworld account manager.
View Your Quote RequestOverview
Sharp NP-PA1004UL-W. Projector brightness: 10000 ANSI lumens, Projection technology: LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Motorized, Aperture range (F-F): 2 - 6.27, Throw ratio: 0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual.... Analog signal format system: NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600..., Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. Serial interface type: RS-232
Key Features
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
- Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Repeater
- Cinema Quality video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 10,000-lumen brightness enhances images for most applications
- ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space
Explore More
Specifications
- Screen size compatibility
- 1016 - 12700 mm (40 - 500")
- Projection distance
- 0.74 - 20.9 m
- Projector brightness
- 10000 ANSI lumens
- Projection technology
- LCD
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 3000000:1
- Native aspect ratio
- 16:10
- Keystone correction, horizontal
- -40 - 40°
- Keystone correction, vertical
- -40 - 40°
- Horizontal synchronization (min)
- 15 kHz
- Horizontal synchronization (max)
- 153 kHz
- Vertical synchronization (min)
- 24 kHz
- Vertical synchronization (max)
- 120 kHz
- Light source type
- Laser
- Service life of light source
- 20000 h
- Focus
- Motorized
- Aperture range (F-F)
- 2 - 6.27
- Throw ratio
- 0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual Zoom Lens w/lens shift , 2.90 – 4.79:1 Manual Zoom Lens w/lens shift , 4.59 – 7.02:1 Manual Zoom Lens w/lens shift , 0.32:1 Ultra-Short Throw Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens
- Analog signal format system
- NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
- Full HD
- Yes
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 4096 x 2160
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
- HDMI version
- 2.0
- DisplayPorts quantity
- 1
- HDBaseT port
- Yes
- USB 2.0 ports quantity
- 1
- Audio (L/R) in
- 1
- Audio (L/R) out
- 1
- Serial interface type
- RS-232
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 2
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Noise level (economic mode)
- 32 dB
- HDCP
- Yes
- Noise level
- 35 dB
- Separate H/V sync
- Yes
- Composite sync
- Yes
- Sync-on-green (SOG)
- Yes
- Built-in speaker(s)
- No
- Market positioning
- Education
- Product type
- Standard throw projector
- Product colour
- Black, White
- Placement
- Ceiling, Floor
- Built-in display
- Yes
- Display
- LCD
- Display diagonal
- 1.93 cm (0.76")
- Power source
- AC
- Power consumption (typical)
- 515 W
- Power consumption (standby)
- 0.8 W
- Power consumption (max)
- 635 W
- Power consumption (PowerSave)
- 0.22 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50-60 Hz
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 25 - 85%
- Storage relative humidity (H-H)
- 20 - 80%
- Operating altitude
- 0 - 3650 m
- Width
- 599 mm
- Depth
- 219 mm
- Height
- 490 mm
- Weight
- 24.4 kg
- Package width
- 735 mm
- Package depth
- 359 mm
- Package height
- 631 mm
- Package weight
- 28.9 kg
