Nec
NP-PA903X W/ NP41ZL LENS BNDL PA903X PROJ NP41ZL LENS 3YR WARR
NEC PA903X, 9000 ANSI lumens, LCD, 1080p (1920x1080), 10000:1, 1016 - 12700 mm (40 - 500"), 0.74 - 20.9 m
MSRP
$10,815.00
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- NP-PA903X-41ZL
- UPC
- 0805736064865
- Category
- Presentation Devices
Overview

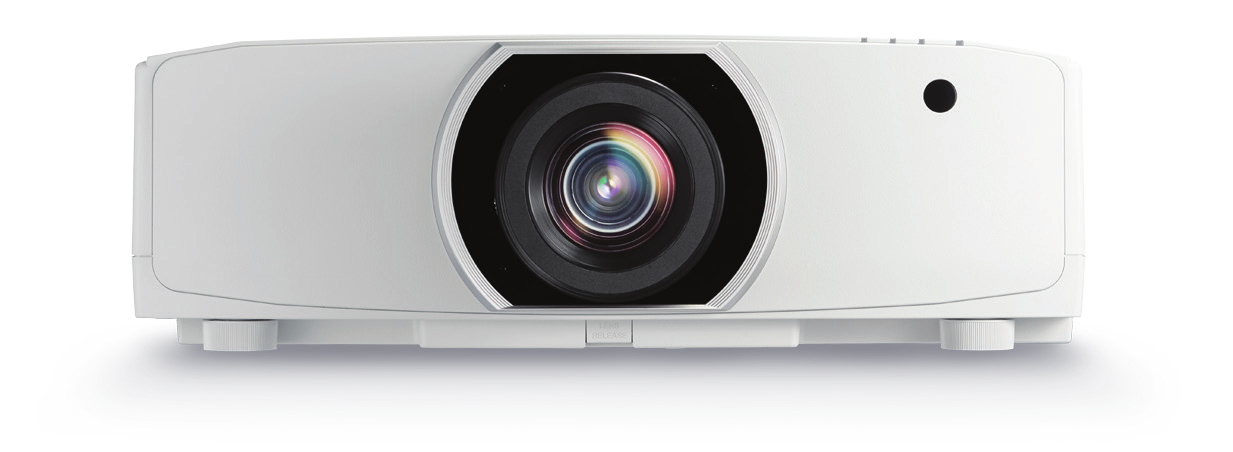

NEC PA903X. Projector brightness: 9000 ANSI lumens, Projection technology: LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 3000 h, Service life of light source (economic mode): 5000 h. Focus: Auto/Manual, Focal length range: 21.8 - 49.7 mm, Aperture range (F-F): 2.2 - 2.6. Analog signal format system: NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600..., Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. Serial interface type: RS-232, HDMI connector type: Full-size
Specifications
Projector
- Screen size compatibility
- 1016 - 12700 mm (40 - 500")
- Projection distance
- 0.74 - 20.9 m
- Projector brightness
- 9000 ANSI lumens
- Projection technology
- LCD
- Projector native resolution
- 1080p (1920x1080)
- Contrast ratio (typical)
- 10000:1
- Keystone correction, horizontal
- -40 - 40°
- Keystone correction, vertical
- -30 - 30°
- Matrix size
- 1.93 cm (0.76")
- Horizontal synchronization (min)
- 15 kHz
- Horizontal synchronization (max)
- 153 kHz
- Vertical synchronization (min)
- 0.048 kHz
- Vertical synchronization (max)
- 0.12 kHz
Light source
- Light source type
- Lamp
- Service life of light source
- 3000 h
- Service life of light source (economic mode)
- 5000 h
- Lamp power
- 420 W
Lens system
- Focus
- Auto/Manual
- Focal length range
- 21.8 - 49.7 mm
- Aperture range (F-F)
- 2.2 - 2.6
- Zoom capability
- Yes
- Zoom type
- Auto/Manual
- Throw ratio
- 1.3 - 3.08:1
- Horizontal lens shift range
- -0.3 - 0.3°
- Vertical lens shift range
- -0.1 - 0.6°
Video
- Analog signal format system
- NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
- Full HD
- Yes
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Ports & interfaces
- HDMI connector type
- Full-size
- HDMI version
- 1.4
- DisplayPorts quantity
- 1
- HDBaseT port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface type
- RS-232
- PC Audio in
- Yes
- PC Audio out
- Yes
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 2
- Remote (IR) output
- 1
- DVI port
- No
- AC (power) in
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi
- No
Storage
- Card reader integrated
- No
Features
- Noise level (economic mode)
- 33 dB
- HDCP
- Yes
- Noise level
- 39 dB
- Separate H/V sync
- Yes
- Composite sync
- Yes
- Sync-on-green (SOG)
- Yes
- Certification
- UL 1950 FCC B, CSA950 (C-UL), NOM
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 10 W
Design
- Product type
- Large venue projector
- Product colour
- White
- Placement
- Desktop, Ceiling
Display
- Built-in display
- No
Power
- Power source
- AC
- Power consumption (typical)
- 566 W
- Power consumption (standby)
- 0.7 W
- Power consumption (PowerSave)
- 0.3 W
- Power consumption (economy mode)
- 390 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Software
- Mac compatibility
- Yes
Operational conditions
- Operating temperature (T-T)
- 5 - 40 °C
- Storage temperature (T-T)
- -10 - 50 °C
- Operating relative humidity (H-H)
- 20 - 80%
Weight & dimensions
- Width
- 503 mm
- Depth
- 411 mm
- Height
- 168 mm
- Weight
- 10.2 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC
- Quick start guide
- Yes
- Manual
- Yes
Other features
- RS-232 ports
- 1
