Netgear

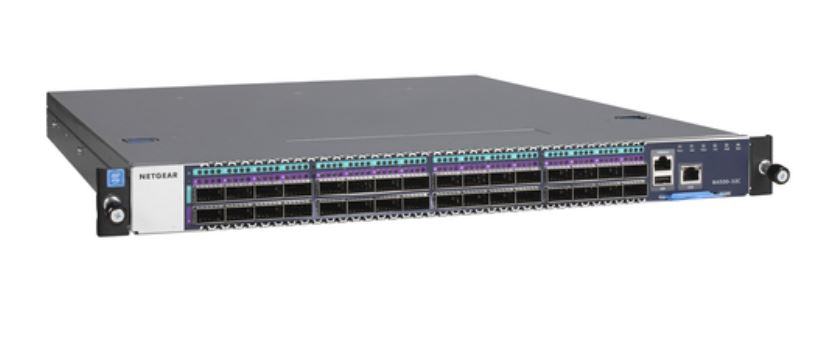

M4500-32C MANAGED SWITCH 32PORT 40/50/100G
NETGEAR M4500-32C, Managed, L2/L3/L4, Rack mounting, 1U
MSRP
$23,803.23
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- CSM4532-100NAS
- UPC
- 0606449145748
- Category
- Network Devices
Overview
NETGEAR M4500-32C. Switch type: Managed, Switch layer: L2/L3/L4. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.3ad. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Key features
- The M4500-32C switch provides 32-port QSFP28 (40G, 50G and 100G fiber)
- With 6.4Tbps non-blocking fabric and 2Bpps forwarding rate, M4500-32C delivers L2/L3/L4 and IPv4/IPv6 rich services for Professional AV-over-IP installations (SDVoE-ready certified)
- Two modular power supplies are pre-installed for 1+1 power redundancy
- Six modular fan trays are pre-installed for 4+2 fan redundancy
- Line-rate spine and leaf topologies with the M4500-48XF8C (32-port SFP28 and 8-port QSFP28)
- Layer 3 feature set includes static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM
- Enhanced IGMP+ implementation for plug & play multicast at Layer 2 between M4300/M4500 switches
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- ARP inspection
- Yes
- System event log
- Yes
Ports & interfaces
- Fiber optic connector
- QSFP+
- Console port
- RJ-45
- QSFP28 ports quantity
- 32
- USB 2.0 ports quantity
- 1
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1AX, IEEE 802.3ad
- 10G support
- Yes
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Rate limiting
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- Auto-sensing
- Yes
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs
- 4000
Optical fiber
- Fiber ethernet cabling technology
- 100BASE-X
Data transmission
- Switching capacity
- 6400 Gbit/s
- MAC address table
- 32000 entries
Security
- DHCP features
- DHCP client, DHCP relay, DHCP server
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- Security algorithms
- HTTPS, SNMP, SSH
- SSH/SSL support
- Yes
- BPDU filtering/protection
- Yes
Multicast features
- Multicast support
- Yes
Protocols
- Management protocols
- Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Black
- Housing material
- Metal
- Reset button
- Yes
- LED indicators
- Yes
- Electromagnetic compatibility
- CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Performance
- Built-in processor
- Yes
- Memory type
- DDR3-SDRAM
- Internal memory
- 8000 MB
- Flash memory
- 256 MB
- Noise level
- 64 dB
Power
- Power consumption (max)
- 426 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Weight & dimensions
- Weight
- 9.78 kg
Packaging content
- User guide
- Yes
- Manual
- Yes
Packaging data
- Package type
- Box
- Package width
- 593 mm
- Package depth
- 888 mm
- Package height
- 186 mm
- Package weight
- 20.5 kg
