Epson

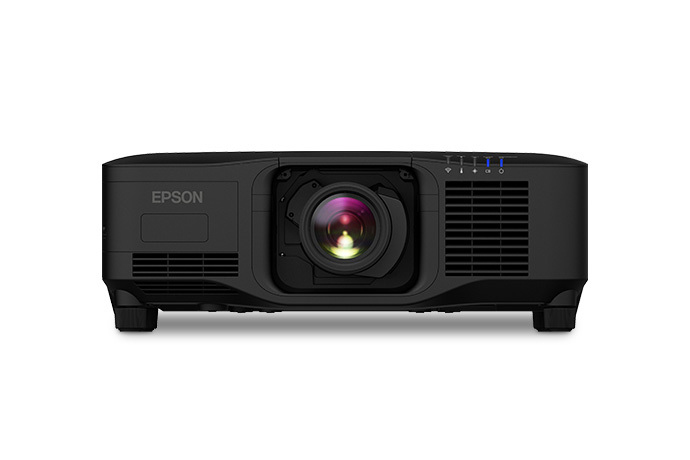

EPSON EB-PU2220B LASER PROJECTOR INTERCHANGEABLE LENS
Epson EB-PU2220B, 20000 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 4:3, 16:10, 16:9, 1.07 billion colours
MSRP
$65,564.00
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- V11HA66820
- UPC
- 0010343968950
- Category
- Presentation Devices
Overview
Epson EB-PU2220B. Projector brightness: 20000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Auto, Focal length range: 14.8 – 17.7, Aperture range (F-F): 2 - 2.1. Supported graphics resolutions: 640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p. Serial interface type: RS-232C, HDMI connector type: Full-size, Service port type: USB Type-B
Key features
- World's smallest and lightest 20,000-lumen projector
- 20,000 lumens of equal white and color brightness
- WUXGA with 4K Enhancement5
- 20,000-hour virtually maintenance-free laser light source
Specifications
Projector
- Supported aspect ratios
- 4:3, 16:10, 16:9
- Projector brightness
- 20000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- WUXGA (1920x1200)
- Contrast ratio (typical)
- 2500000:1
- Number of colours
- 1.07 billion colours
- Uniformity
- 85%
- Keystone correction, horizontal
- ±30°
- Keystone correction, vertical
- ±45°
- Matrix type
- 3-panel (p-Si TFT active)
- White light output
- 20000 ANSI lumens
- Colour light output
- 20000 ANSI lumens
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h
Lens system
- Focus
- Auto
- Focal length range
- 14.8 – 17.7
- Aperture range (F-F)
- 2 - 2.1
- Optical zoom
- 1.6x
- Throw ratio
- 1.57 – 2.56
- Horizontal lens shift range
- -18 - 18%
- Vertical lens shift range
- -60 - 60%
- Number of optional lenses supported
- 9
- Interchangeable lens
- Yes
Video
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p
Ports & interfaces
- HDMI connector type
- Full-size
- HDBaseT port
- Yes
- Service port type
- USB Type-B
- USB 2.0 Type-A ports quantity
- 2
- Serial interface type
- RS-232C
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- DVI port
- Yes
- AC (power) in
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- Noise level (economic mode)
- 37 dB
- HDCP
- Yes
- Projection modes
- Ceiling, Front, Rear
- HDCP version
- 2.3
- Test patterns
- Yes
- Noise level
- 45 dB
- High Dynamic Range (HDR) supported
- Yes
- Password protection
- Yes
Multimedia
- Timeshift
- Yes
Design
- Market positioning
- Presentation
- Product type
- Large venue projector
- Product colour
- Black
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Power
- Power source
- AC
- Power consumption (typical)
- 1301 W
- Power consumption (standby)
- 2 W
- Power consumption (economy mode)
- 899 W
- AC input voltage
- 220 - 240 V
- AC input frequency
- 50 - 60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
Weight & dimensions
- Width
- 587 mm
- Depth
- 493 mm
- Height
- 218 mm
- Weight
- 24.4 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC
- Manual
- Yes
- Warranty card
- Yes
- Packaging content
- EB-PU2220B projector, power cable, remote control with two batteries, cable cover, user guide and warranty sheet
Technical details
- Compliance certificates
- RoHS
