Netgear

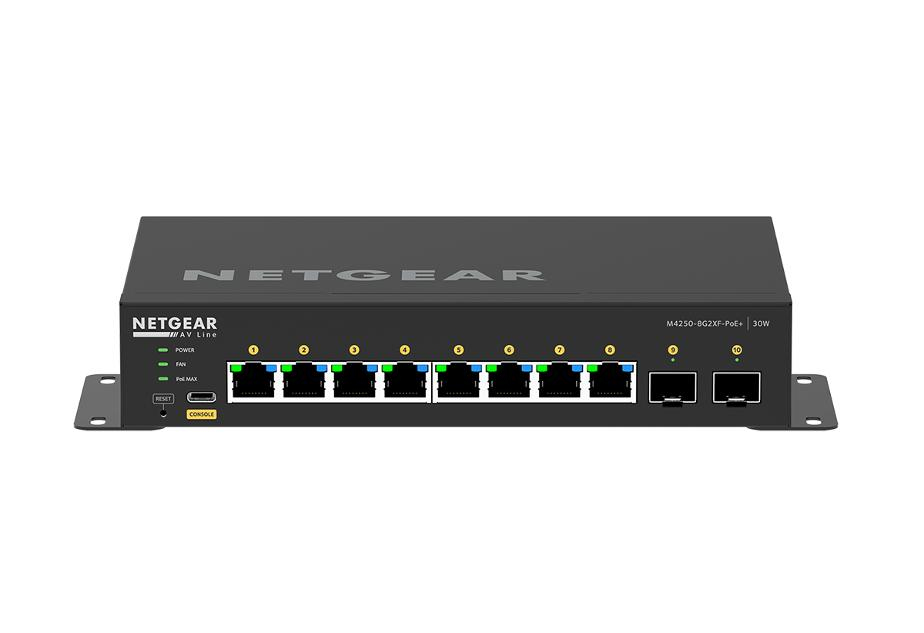

AV LINE M4250-8G2XF-POE+ FULLY MANAGED DESKTOP SWITCH
NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
MSRP
$1,198.64
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- GSM4210PX-100NAS
- UPC
- 0606449160215
- Category
- Network Devices
Overview
NETGEAR 8x1G PoE+ 220W and 2xSFP+ Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Full duplex
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
Data transmission
- Switching capacity
- 24 Gbit/s
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Latency (1 Gbps)
- 24 µs
Security
- DHCP features
- DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication
- Authentication type
- RADIUS
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Black
- LED indicators
- PoE, Power, Status
Performance
- Built-in processor
- Yes
- Processor model
- ARM Cortex-A9
- Internal memory
- 2048 MB
- Noise level
- 30.06 dB
Power
- Power source
- AC/DC
- Power supply included
- Yes
- AC input voltage
- 220 - 240 V
- AC input frequency
- 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 220 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 3000 m
- Heat dissipation
- 559.555 BTU/h
Weight & dimensions
- Width
- 210 mm
- Depth
- 140 mm
- Height
- 40 mm
- Weight
- 967 g
Packaging content
- User guide
- Yes
- Manual
- Yes
