Netgear

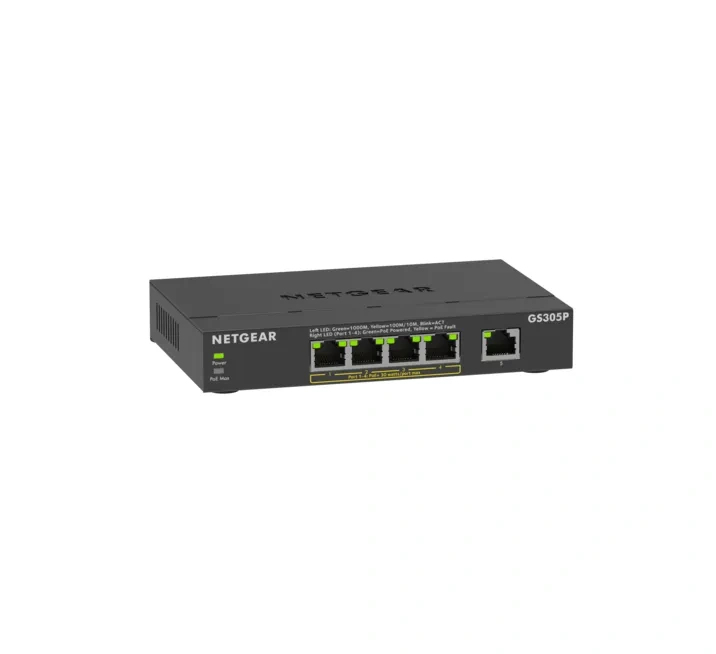

5PORT GBE UNMANAGED SWITCH W/ POE+
NETGEAR GS305P, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Desktop/Wall-Mounting, Wall mountable
MSRP
$93.71
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- GS305P-300NAS
- UPC
- 0606449163155
- Category
- Network Devices
Overview
NETGEAR GS305P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u,.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Full duplex
- Yes
- Half duplex
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cable length detection
- Yes
Data transmission
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 1.448 Mpps
- MAC address table
- 2000 entries
- Latency (1 Gbps)
- 2.4 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet forwarding rate (1 Gbps)
- 1448000 pps
- Packet buffer memory
- 0.128 MB
Security
- MAC address filtering
- Yes
Design
- Rack mounting
- No
- Stackable
- No
- Form factor
- Desktop/Wall-Mounting
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Yes
- Wall mountable
- Yes
Performance
- Fanless
- Yes
- Mean time between failures (MTBF)
- 4113947 h
Power
- Power source
- DC/PoE
- DC input voltage
- 54 V
- Input current
- 1.25 A
- Power consumption (max)
- 66.78 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 63 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 228.38 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 27 mm
- Weight
- 400 g
