Netgear

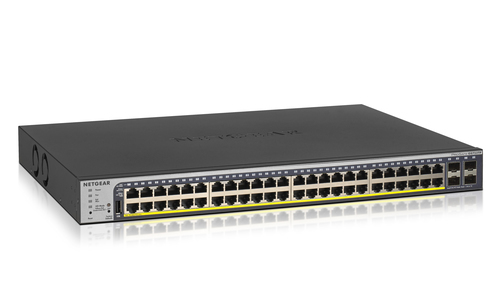

52PT GE POE+ SMART SWITCH
NETGEAR GS752TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
MSRP
$867.99
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- GS752TP-300NAS
- UPC
- 0606449162479
- Category
- Network Devices
Overview
NETGEAR GS752TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 4
- USB 2.0 ports quantity
- 1
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x
- 10G support
- No
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Auto-sensing
- Yes
- VLAN support
- Yes
- Number of VLANs
- 256
Data transmission
- Switching capacity
- 104 Gbit/s
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Latency (1 Gbps)
- 3.35 µs
- Static route
- Yes
- Packet buffer memory
- 1.5 MB
Security
- DHCP features
- DHCP server, DHCP snooping
- Access Control List (ACL)
- Yes
- Access Control List (ACL) rules
- 100
- IGMP snooping
- Yes
- MAC address filtering
- Yes
Multicast features
- Multicast support
- Yes
- Multicast MAC address table
- 512 entries
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Yes
- Number of fans
- 2 fan(s)
Performance
- Built-in processor
- Yes
- Processor model
- ARM Cortex-A55
- Processor frequency
- 800 MHz
- Internal memory
- 128 MB
- Flash memory
- 32 MB
- Noise level
- 36.6 dB
Power
- Power source
- PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 48
- Total Power over Ethernet (PoE) budget
- 380 W
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 1474.02 BTU/h
Weight & dimensions
- Width
- 440 mm
- Depth
- 310 mm
- Height
- 42.2 mm
- Weight
- 4.93 kg
Certificates
- Certification
- CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
