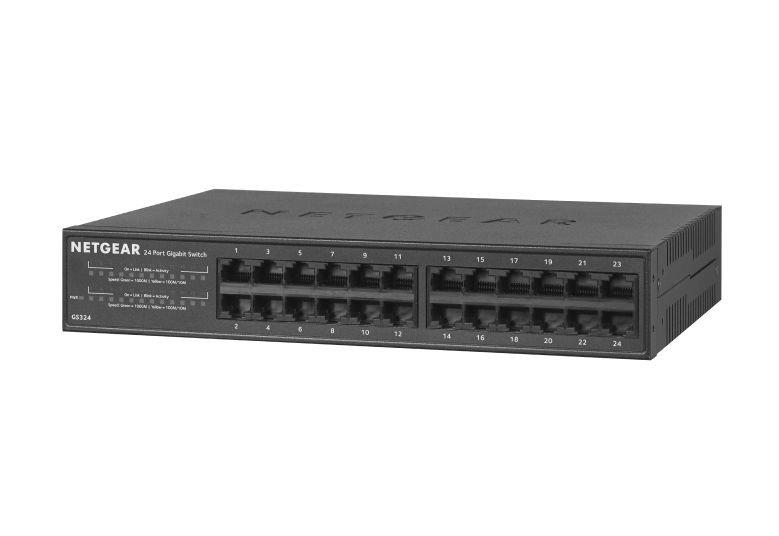

NETGEAR GS324 Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
NETGEAR GS324, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, 1U, Wall mountable
Part NumberGS324-200NAS
UPC0606449151459
MSRP
$138.10
Public MSRP in CAD. Your quoted price comes from an account manager.
In Stock
Quantity
Get your price from a Dataworld account manager.
View Your Quote RequestOverview
NETGEAR GS324. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az. Wall mountable, Rack mounting, Form factor: 1U
Key Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Desktop, wall or rackmountable
Explore More
Specifications
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
- 10G support
- No
- Cable types supported
- Cat5
- Auto MDI/MDI-X
- Yes
- Auto-sensing
- Yes
- Switching capacity
- 48 Gbit/s
- MAC address table
- 8000 entries
- Latency (1 Gbps)
- 4.7 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet forwarding rate (1 Gbps)
- 1448000 pps
- Packet buffer memory
- 0.512 MB
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Black
- LED indicators
- Activity, Link, Power, Speed
- Wall mountable
- Yes
- Fanless
- Yes
- Mean time between failures (MTBF)
- 1016877 h
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 0.7 A
- Power consumption (typical)
- 4.33 W
- Power consumption (max)
- 12.1 W
- Power over Ethernet (PoE)
- No
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 41.2 BTU/h
- Width
- 252 mm
- Depth
- 180 mm
- Height
- 44 mm
- Weight
- 1.21 kg
- Cables included
- AC
- Manual
- Yes
- Certification
- CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD
