Netgear
16PT GE U60 POE++ UM SWITCH

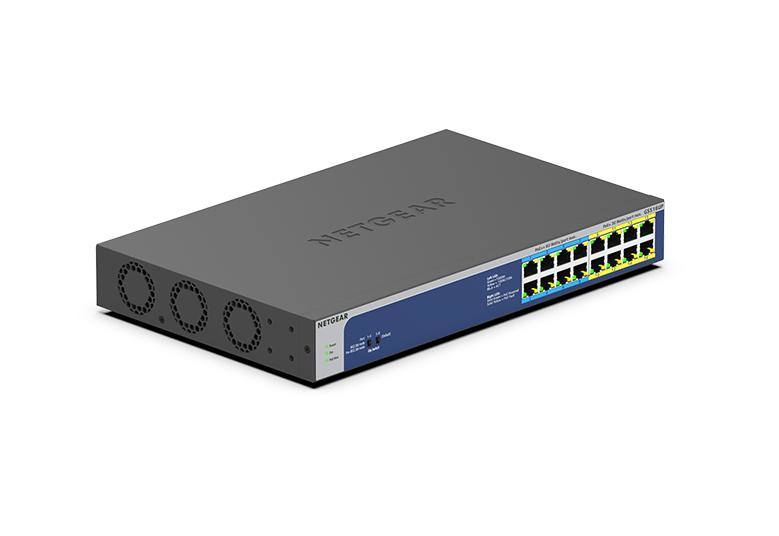

NETGEAR GS516UP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
MSRP
$423.67
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- GS516UP-100NAS
- UPC
- 0606449149739
- Category
- Network Devices
Overview
NETGEAR GS516UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting
Key features
- PLUG AND PLAY: Simple setup with no software or configuration needed
- POWER-OVER-ETHERNET: large 380W total PoE budget with 8 Ultra60 PoE++ ports and 8 PoE+ ports to power wireless AP, 4K/8K IP Cameras, LED lights, IoT devices, and much more
- COMPACT, FLEXIBLE FORM FACTOR – Small case with internal power supply and whisper-quiet fans, perfect for desktop, wall-mount, or rackmount deployment
- EASY-MONITORING - Per port LEDs for port activity and speed
- GIGABIT ETHERNET – 16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32Gb non-blocking switching
- PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u
- 10G support
- No
- Full duplex
- Yes
- Half duplex
- Yes
- Auto MDI/MDI-X
- Yes
Data transmission
- Switching capacity
- 32 Gbit/s
- MAC address table
- 8000 entries
- Jumbo frames support
- Yes
- Packet forwarding rate (1 Gbps)
- 1448000 pps
Design
- Rack mounting
- Yes
- Product colour
- Grey
- Housing material
- Metal
- LED indicators
- Activity, Link, PoE, Power, Speed
- Number of fans
- 3 fan(s)
Performance
- Mean time between failures (MTBF)
- 1213791 h
Power
- Power source
- PoE
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input current
- 8 - 4 A
- Power consumption (max)
- 456.8 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Power over Ethernet (PoE) power per port
- 60 W
- Total Power over Ethernet (PoE) budget
- 380 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 1559.5152 BTU/h
Weight & dimensions
- Width
- 390 mm
- Depth
- 220 mm
- Height
- 43 mm
- Weight
- 2.6 kg
