Netgear

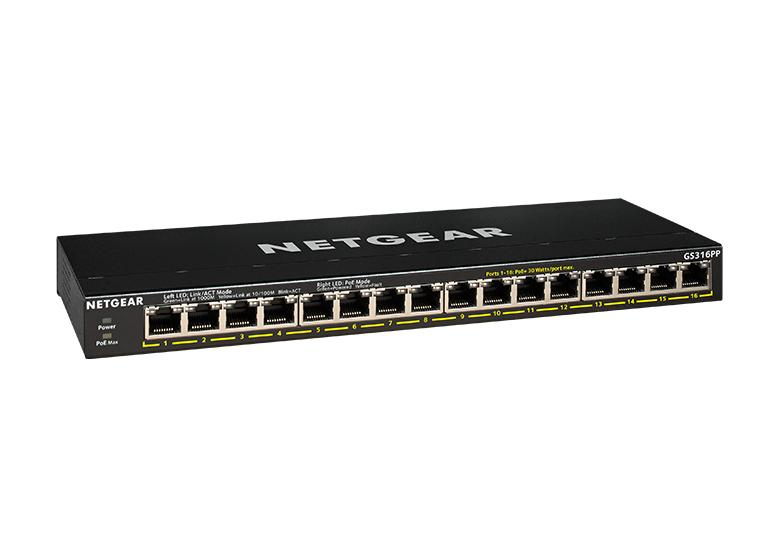

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS316PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Part NumberGS316PP-100NAS
UPC0606449146899
MSRP
$276.21
Public MSRP in CAD. Your quoted price comes from an account manager.
Available to Order
Quantity
Get your price from a Dataworld account manager.
View Your Quote RequestOverview
NETGEAR GS316PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE.... DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting
Key Features
- ETHERNET PORT CONFIGURATION: 16 Gigabit ports
- POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget for high-power PoE devices
- POE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
- PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
- VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Explore More
Specifications
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Full duplex
- Yes
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-sensing
- Yes
- Auto-negotiation
- Yes
- Switching capacity
- 32 Gbit/s
- MAC address table
- 4000 entries
- Latency (1 Gbps)
- 3.7 µs
- Jumbo frames support
- Yes
- Jumbo frames
- 9216
- Packet forwarding rate (1 Gbps)
- 1448000 pps
- Packet buffer memory
- 1 MB
- Rack mounting
- Yes
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Activity, Link, PoE, Power, Speed
- Wall mountable
- Yes
- Mean time between failures (MTBF)
- 2362192 h
- Power source
- DC/PoE
- DC input voltage
- 54 V
- Input current
- 3.7 A
- Power consumption (max)
- 195.9 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 183 W
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Operating altitude
- 0 - 3000 m
- Heat dissipation
- 669.9 BTU/h
- Width
- 286 mm
- Depth
- 102 mm
- Height
- 27 mm
- Weight
- 880 g
- Certification
- CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
