Startech
VGA VIDEO EXTENDER OVER CAT 5 W

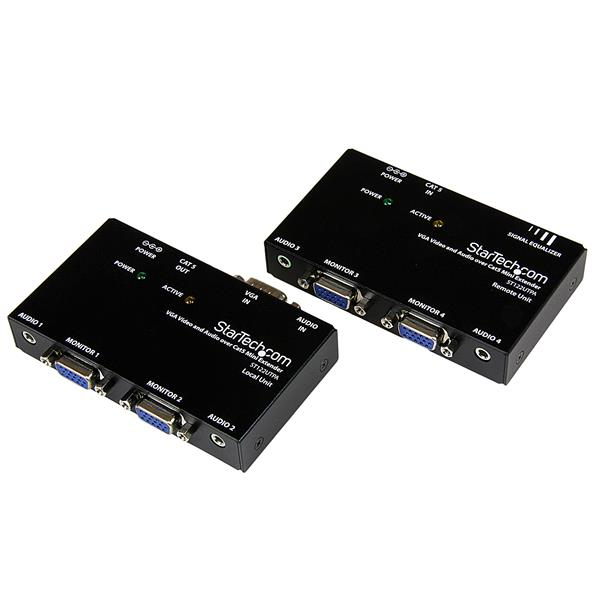

StarTech.com VGA Video Extender over Cat 5 with Audio, AV transmitter & receiver, 150 m, Black
MSRP
$202.94
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- ST122UTPA
- UPC
- 0065030811408
- Category
- Accessories
Overview
StarTech.com VGA Video Extender over Cat 5 with Audio. Type: AV transmitter & receiver, Cable types supported: Cat5e, Cat6, Maximum transfer distance: 150 m. Audio input: 2 x 3.5 mm, Audio output: 2 x 3.5 mm. Operating voltage: 12 V, Output current: 0.5 A, Power consumption (typical): 6 W. Receiver dimensions (WxDxH): 83 x 60 x 20 mm, Receiver weight: 181 g, Transmitter dimensions (WxDxH): 83 x 60 x 20 mm. Package dimensions (WxDxH): 92 x 242 x 188 mm, Package weight: 1.2 kg
Specifications
Features
- Type
- AV transmitter & receiver
- Cable types supported
- Cat5e, Cat6
- Maximum transfer distance
- 150 m
- Supported graphics resolutions
- 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
- Material
- Aluminium
- Daisy chain
- No
- Product colour
- Black
- Certification
- CE, FCC
Ports & interfaces
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- VGA (D-Sub) input ports
- 2
- VGA (D-Sub) output ports
- 2
- Audio input
- 2 x 3.5 mm
- Audio output
- 2 x 3.5 mm
- DC-in jack
- Yes
Power
- Operating voltage
- 12 V
- Output current
- 0.5 A
- Power consumption (typical)
- 6 W
- External power adapter
- Yes
Weight & dimensions
- Receiver dimensions (WxDxH)
- 83 x 60 x 20 mm
- Receiver weight
- 181 g
- Transmitter dimensions (WxDxH)
- 83 x 60 x 20 mm
- Transmitter weight
- 181 g
Packaging data
- Package dimensions (WxDxH)
- 92 x 242 x 188 mm
- Package weight
- 1.2 kg
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
- Mounting brackets included
- Yes
Technical details
- Audio support
- Yes
- Compliance certificates
- RoHS
