APC by Schneider Electric
RACK PDU 9000 SWITCHED ZEROU

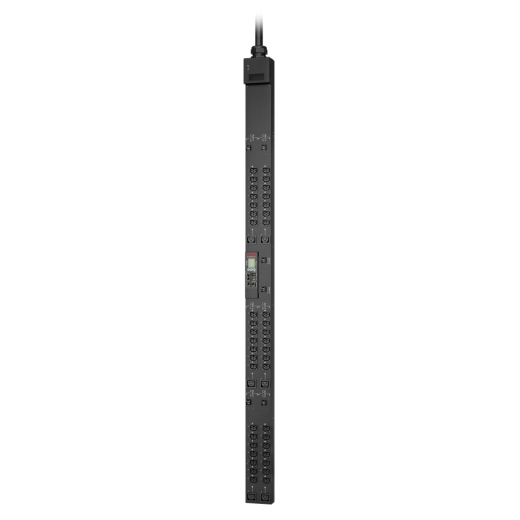

APC APDU9967, Switched, 0U, Single-phase, Horizontal/Vertical, Black, C13 coupler, C15 coupler, C19 coupler, C21 coupler
MSRP
$5,725.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- APDU9967
- UPC
- 0731304356349
- Category
- Power Protection / UPS
Overview
APC APDU9967. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: IEC 60309. Cable length: 1.8 m. Nominal input voltage: 208 V, Maximum current: 48 A, AC input frequency: 50 - 60 Hz. Width: 111 mm, Depth: 76 mm, Height: 1833 mm
Key features
- Flash Upgradeable
- Wireless Connectivity
- Wide range of input and output connections
- Rack-Mountable
- Single input power source
- Alarm Thresholds
- EcoStruxure IT Ready
- Enhanced Cybersecurity
- Multi-tier user access
- Network Management Capabilities
- Gigabit Ethernet Connectivity
- 1% Metering Accuracy
- Network Port Sharing
- Outlet Level Grouping
- Field-replaceable NMC
- High Retention Outlets
- Hydraulic Magnetic Circuit Breakers
Specifications
Design
- PDU types
- Switched
- Type
- Single-phase
- Rack capacity
- 0U
- Mounting
- Horizontal/Vertical
- Product colour
- Black
Ports & interfaces
- Power plug
- IEC 60309
- AC outlet types
- C13 coupler, C15 coupler, C19 coupler, C21 coupler
Features
- Cable length
- 1.8 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 48 A
- Block 1 output current
- 60 A
- Block 2 output current
- 60 A
- Nominal output voltage
- 208 V
- Output voltage
- 208 V
- Load capacity
- 17300 VA
- Maximum input current per phase
- 60 A
- Maximum total current draw per phase
- 48 A
- Power protection features
- Overload
- Maximum power
- 17300 W
Operational conditions
- Operating temperature (T-T)
- -5 - 60 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15240 m
- Operating temperature (T-T)
- 23 - 140 °F
Weight & dimensions
- Width
- 111 mm
- Depth
- 76 mm
- Height
- 1833 mm
- Weight
- 14.5 kg
Packaging data
- Package weight
- 20 kg
- Package width
- 221 mm
- Package depth
- 112 mm
- Package height
- 2149 mm
