Samsung
QM32R-T 32 FHD CAPACITIVE TOUCH

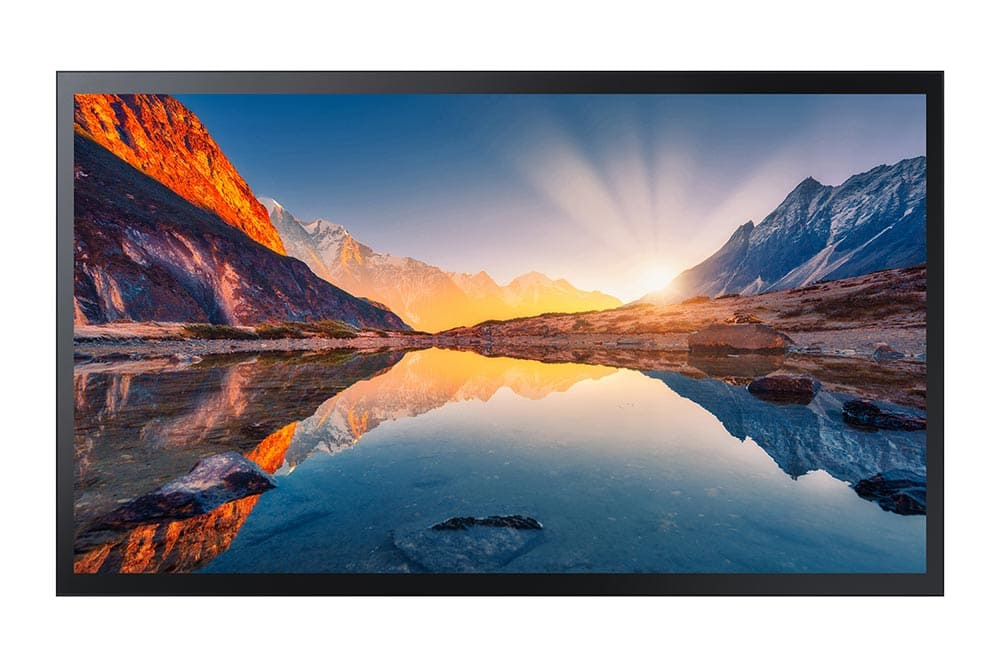

Samsung QM32R-T, Digital signage flat panel, 81.3 cm (32"), LED, 1920 x 1080 pixels, Wi-Fi, 16/7
MSRP
Price on request
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- LH32QMRTBGCXZA
- UPC
- 0887276445854
- Category
- Displays
Overview
Samsung QM32R-T. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
Specifications
Display
- LED backlighting type
- Edge-LED BLU
- Display diagonal
- 81.3 cm (32")
- Display technology
- LED
- Display resolution
- 1920 x 1080 pixels
- Display brightness
- 300 cd/m²
- HD type
- Full HD
- Touchscreen
- Yes
- Response time
- 8 ms
- Contrast ratio (typical)
- 5000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 16.7 million colours
- Pixel pitch
- 0.3638 x 0.3638 mm
- Active display area (W x H)
- 698.4 x 392.85 mm
- Haze rate
- 2%
Ports & interfaces
- HDMI ports quantity
- 3
- HDMI version
- 2.0
- HDMI input ports quantity
- 2
- HDMI output ports quantity
- 1
- DVI port
- No
- DisplayPorts quantity
- 1
- USB port
- Yes
- USB ports quantity
- 2
- USB version
- 2.0
- Ethernet LAN (RJ-45) ports
- 1
- Audio (L/R) out
- 1
- RS-232C
- Yes
- Infrared data port
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 20 W
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor/outdoor
- Orientation
- Horizontal/Vertical
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 200 x 200 mm
- Bezel width (bottom)
- 2.45 cm
- Bezel width (side)
- 2.15 cm
- Bezel width (top)
- 2.45 cm
Performance
- Purpose
- Commercial
- Operating hours (hours/days)
- 16/7
- HDCP
- Yes
- International Protection (IP) code
- IP5X
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 45 W
- Power consumption (standby)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Energy efficiency scale
- A+++ to D
Computer system
- Built-in processor
- Yes
- Processor manufacturer
- ARM
- Processor family
- ARM Cortex
- Processor model
- A72
- Processor frequency
- 1.7 GHz
- Processor cores
- 4
- Internal storage capacity
- 8 GB
- Operating system installed
- Tizen 4.0
- Video formats supported
- AVC, AVS+, H.263, H.264, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
- Audio formats supported
- AC3
- Image formats supported
- JPEG, PNG
Weight & dimensions
- Width
- 744.4 mm
- Depth
- 48.2 mm
- Height
- 444.6 mm
- Weight
- 8.3 kg
Packaging data
- Package width
- 872 mm
- Package depth
- 133 mm
- Package height
- 565 mm
- Package weight
- 11.1 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Features
- Heat dissipation (max)
- 245.7 BTU/h
Other features
- Annual energy consumption
- 66 kWh
- Energy efficiency class (old)
- B
