Allied Telesis
GS980M/52 48PORT MANAGED 1000TX

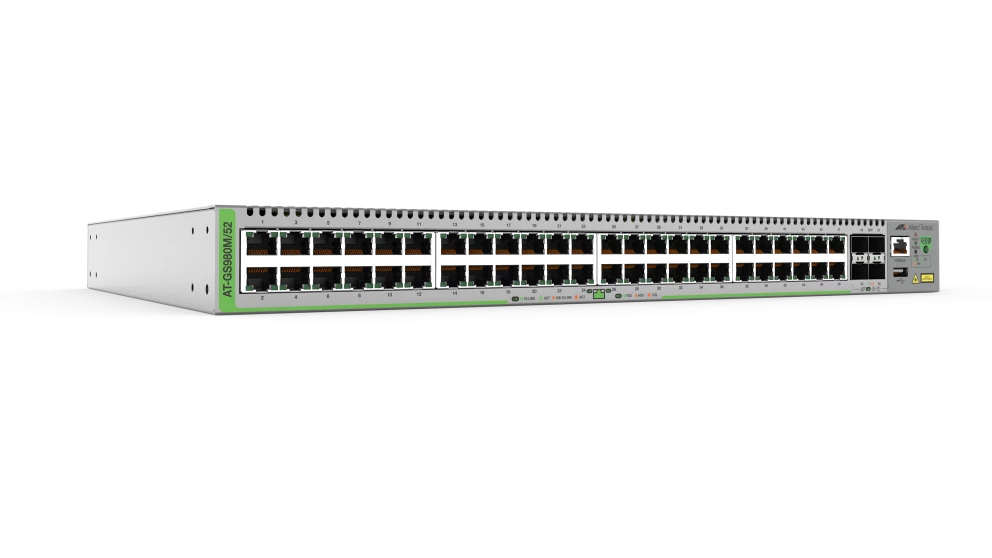

Allied Telesis GS980M, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
MSRP
$2,541.74
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-GS980M/52-10
- UPC
- 0767035212357
- Category
- Network Devices
Overview
Allied Telesis GS980M. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Rack mounting, Form factor: 1U
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- SNMP MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP module slots quantity
- 4
Network
- Networking standards
- IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-T, 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- IP routing
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- IPv4 routes
- 16
- IPv6 routes
- 16
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN
- Number of VLANs
- 4094
Optical fiber
- Fiber ethernet cabling technology
- 100BASE-X, 1000BASE-X
Data transmission
- Switching capacity
- 104 Gbit/s
- Forwarding rate
- 77.4 Mpps
- MAC address table
- 16000 entries
- Latency (10-100 Mbps)
- 5.5 µs
- Latency (1 Gbps)
- 2.6 µs
- Static route
- Yes
- Jumbo frames support
- Yes
- Packet buffer memory
- 3 MB
Security
- DHCP features
- DHCP client, DHCP snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- Security algorithms
- 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TTLS
- MAC address filtering
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication, Port-based authentication
- Password protection
- Yes
- Authentication type
- AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
Multicast features
- Multicast support
- Yes
Protocols
- Routing protocols
- RIP, RIP-2
Design
- Rack mounting
- Yes
- Form factor
- 1U
- Product colour
- Grey
Performance
- Memory type
- DDR-SDRAM
- Internal memory
- 512 MB
- Flash memory
- 128 MB
- Noise level
- 39 dB
Power
- Power source
- AC
- Power supply included
- Yes
- Power consumption (max)
- 47 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
- Heat dissipation
- 160 BTU/h
Weight & dimensions
- Width
- 441 mm
- Depth
- 323 mm
- Height
- 44 mm
- Weight
- 4.5 kg
Packaging data
- Package width
- 575 mm
- Package depth
- 445 mm
- Package height
- 150 mm
- Package weight
- 6.4 kg
