Startech
DUAL 4K 60HZ THUNDERBOLT 3 DOCK MACBOOK PRO/WINDOWS DP/HDMI/VGA

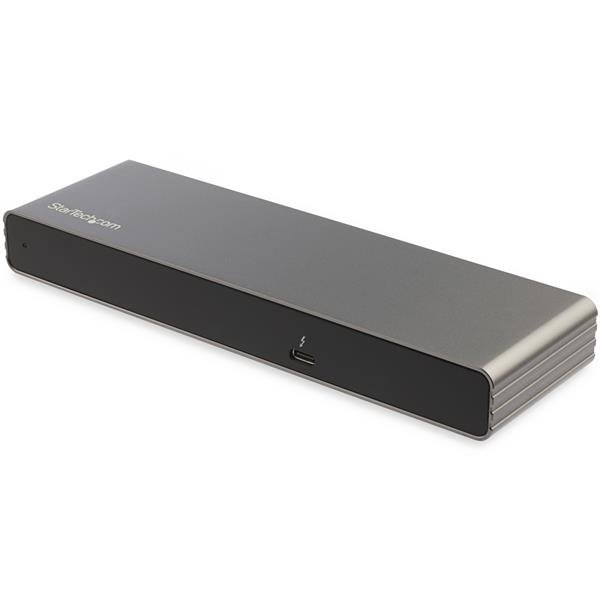

StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows - TAA, Wired, Thunderbolt 3, 85 W, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Grey
MSRP
$124.99
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- TB3DK2DHV
- UPC
- 0065030876230
- Category
- Accessories
Overview
StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows - TAA. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1.8 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Key features
- HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40Gbps); Up to dual 4K 60Hz video; 2x DisplayPort, 1x HDMI, 1x VGA; 2-Port USB-A Hub (USB 3.2 Gen 1 5Gbps); Gigabit Ethernet; 85W Power Delivery
- FLEXIBLE MONITOR OUTPUTS: Connect up to two external monitors for up to dual 4K video with any combination of 2x DP (4K 60Hz), 1x HDMI (4K 60Hz) or VGA (1080p 60Hz); Video output utilizes direct GPU performance with no software or compression
- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters; Included 1.6 ft (0.5 m) Thunderbolt 3 host cable; Front facing Thunderbolt 3 host port for hassle-free installation
- OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring & Windows Layout
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- Thunderbolt 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 85 W
- HDMI ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DisplayPorts quantity
- 2
- Microphone in
- No
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- 10G support
- No
Performance
- Card reader integrated
- No
- Data transfer rate
- 40 Gbit/s
- Maximum digital resolution
- 4096 x 2160 pixels
- Product colour
- Grey
- UASP support
- Yes
- Housing material
- Aluminium
- Certification
- CE, FCC, REACH
Power
- Power source type
- AC
- AC input voltage
- 100 - 240 V
- Input current
- 1.8 A
- Power supply type
- External
- Output voltage
- 19 V
- Output current
- 6.32 A
- Power consumption (typical)
- 120 W
- Power plug type
- Type N
- Compatible power plug types
- AU, JP, US
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 20 - 80%
Weight & dimensions
- Width
- 58.6 mm
- Depth
- 196 mm
- Height
- 24 mm
- Weight
- 340 g
Packaging data
- Package width
- 187 mm
- Package depth
- 254 mm
- Package height
- 65 mm
- Package weight
- 1.3 kg
Packaging content
- Cables included
- Thunderbolt
- AC adapter included
- Yes
- Manual
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 20 pc(s)
- Master (outer) case width
- 390 mm
- Master (outer) case length
- 676 mm
- Master (outer) case height
- 280 mm
Other features
- Cable length
- 0.5 m
- Chipset
- Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
