BASC STD 2U HORIZONTAL 32A 3WYE

Overview

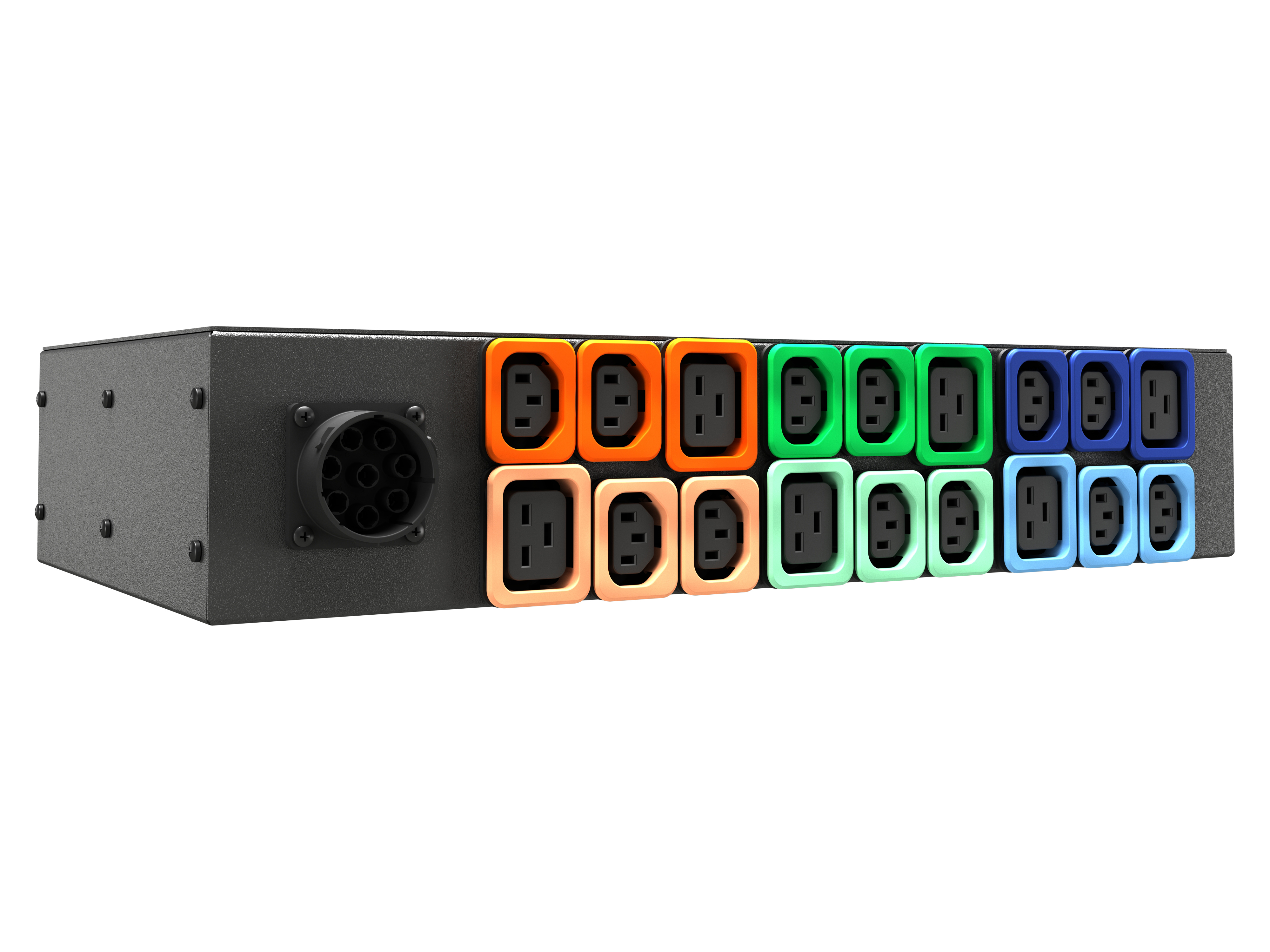

Vertiv U1071L. PDU types: Basic, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Nominal input voltage: 230/400 V, Maximum current: 32 A, AC input frequency: 50 Hz. Compliance certificates: RoHS, Certification: CE, UL, CB. Width: 87 mm, Depth: 432 mm, Height: 299 mm

Key features

• The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
• Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
• Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
• The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
• The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
• Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only)
