APC by Schneider Electric

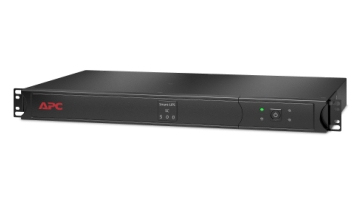

APC SMART-UPS SC 500VA 120V 1U
APC SC500RM1U, Line-Interactive, 0.5 kVA, 300 W, 120 V, 50/60 Hz, 120 V
MSRP
$549.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- SC500RM1U
- UPC
- 0731304452447
- Category
- Power Protection / UPS
Overview
APC SC500RM1U. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: NEMA 5-15R, NEMA 5-15P, Power plug: NEMA 5-15P, AC outlets quantity: 4 AC outlet(s). Battery capacity: 7000 mAh, Battery technology: Lead-Acid, Battery capacity: 7 Ah. Form factor: Rackmount, Product colour: Black, International Protection (IP) code: IP20. Width: 440 mm, Depth: 268 mm, Height: 44 mm
Key features
- 500VA/400W line interactive sine wave 1U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Short depth UPS provides extra space for cable management
- Graceful shutdown using serial or USB cables via PowerChute Software
- Peace of mind with a 2-year warranty on UPS and battery
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.5 kVA
- Output power
- 300 W
- Input operation voltage (min)
- 120 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Surge energy rating
- 400 J
- Response time
- 6 ms
- Noise level
- 40 dB
Ports & interfaces
- AC outlet types
- NEMA 5-15R, NEMA 5-15P
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
Battery
- Battery capacity
- 7000 mAh
- Battery technology
- Lead-Acid
- Battery capacity
- 7 Ah
- Battery voltage
- 12 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 5 h
Design
- Form factor
- Rackmount
- Product colour
- Black
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Weight & dimensions
- Width
- 440 mm
- Depth
- 268 mm
- Height
- 44 mm
- Weight
- 8.1 kg
Packaging data
- Package width
- 500 mm
- Package depth
- 333 mm
- Package height
- 140 mm
- Package weight
- 8.7 kg
