Viewsonic
86IN 3840X21604K ULTRA HD

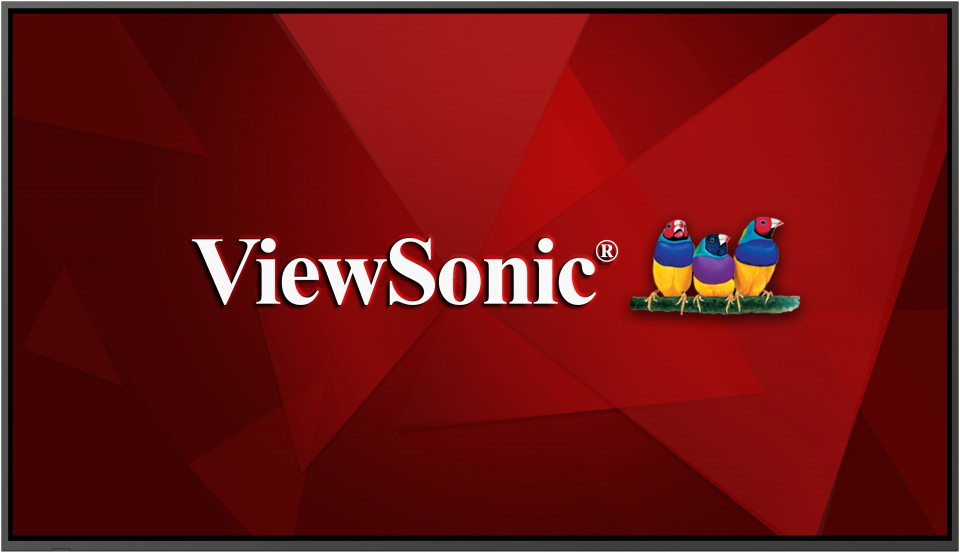

Viewsonic CDE8620, Digital signage flat panel, 2.18 m (86"), IPS, 3840 x 2160 pixels
MSRP
$5,141.98
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- CDE8620-W
- UPC
- 0766907004205
- Category
- Displays
Overview
Viewsonic CDE8620. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Product colour: Black
Key features
- Easy cast function
- Wireless presentation across devices and rooms
- USB flash drive plug-and-play for photos, music & video
- Multitasking with powerful embedded player & OPS PC slot
- 4K slim bezel commercial display
Specifications
Display
- LED backlighting type
- Direct-LED
- Display diagonal
- 2.18 m (86")
- Display technology
- IPS
- Display resolution
- 3840 x 2160 pixels
- Display brightness
- 450 cd/m²
- HD type
- 4K Ultra HD
- Touchscreen
- No
- Native aspect ratio
- 16:9
- Response time
- 8 ms
- Contrast ratio (typical)
- 1200:1
- Contrast ratio (dynamic)
- 5000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 1.07 billion colours
- Pixel pitch
- 0.4935 x 0.4935 mm
- Active display area (W x H)
- 1895.04 x 1065.96 mm
- Display diagonal (metric)
- 218 cm
- Panel life
- 30000 h
- Haze rate
- 28%
- Surface hardness
- 2H
Ports & interfaces
- HDMI ports quantity
- 3
- HDMI input ports quantity
- 2
- HDMI output ports quantity
- 1
- DVI port
- No
- VGA (D-Sub) input ports
- 1
- DisplayPorts quantity
- 1
- USB port
- Yes
- USB ports quantity
- 3
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
- OPS module slot
- Yes
Audio
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- RMS rated power
- 32 W
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Orientation
- Horizontal
- Product colour
- Black
- VESA mounting
- Yes
- Panel mounting interface
- 600 x 400 mm
- Anti-glare screen
- Yes
Performance
- Purpose
- Universal
Power
- Power consumption (typical)
- 365 W
- Power consumption (standby)
- 0.5 W
- Energy efficiency class (SDR)
- G
- Energy consumption (SDR) per 1000 hours
- 253 kWh
- AC input voltage
- 100-240 V
- AC input frequency
- 50-60 Hz
- Energy efficiency scale
- A to G
Weight & dimensions
- Display width
- 1931 mm
- Display depth
- 82 mm
- Display height
- 1109 mm
- Display weight
- 50.4 kg
Packaging data
- Package width
- 2118 mm
- Package depth
- 280 mm
- Package height
- 1271 mm
- Package weight
- 69.8 kg
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC, HDMI
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -10 - 60 °C
- Storage relative humidity (H-H)
- 10 - 80%
Certificates
- Certification
- cULus, FCC, Energy Star, EPEAT,MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
Network
- Ethernet LAN
- Yes
- Wi-Fi
- No
Technical details
- Sustainability certificates
- ENERGY STAR, ErP
- Compliance certificates
- CE, REACH, RoHS
