4PORT USB 2.0 EXTENDER OVER ETHERNET UP TO 330FT 100M

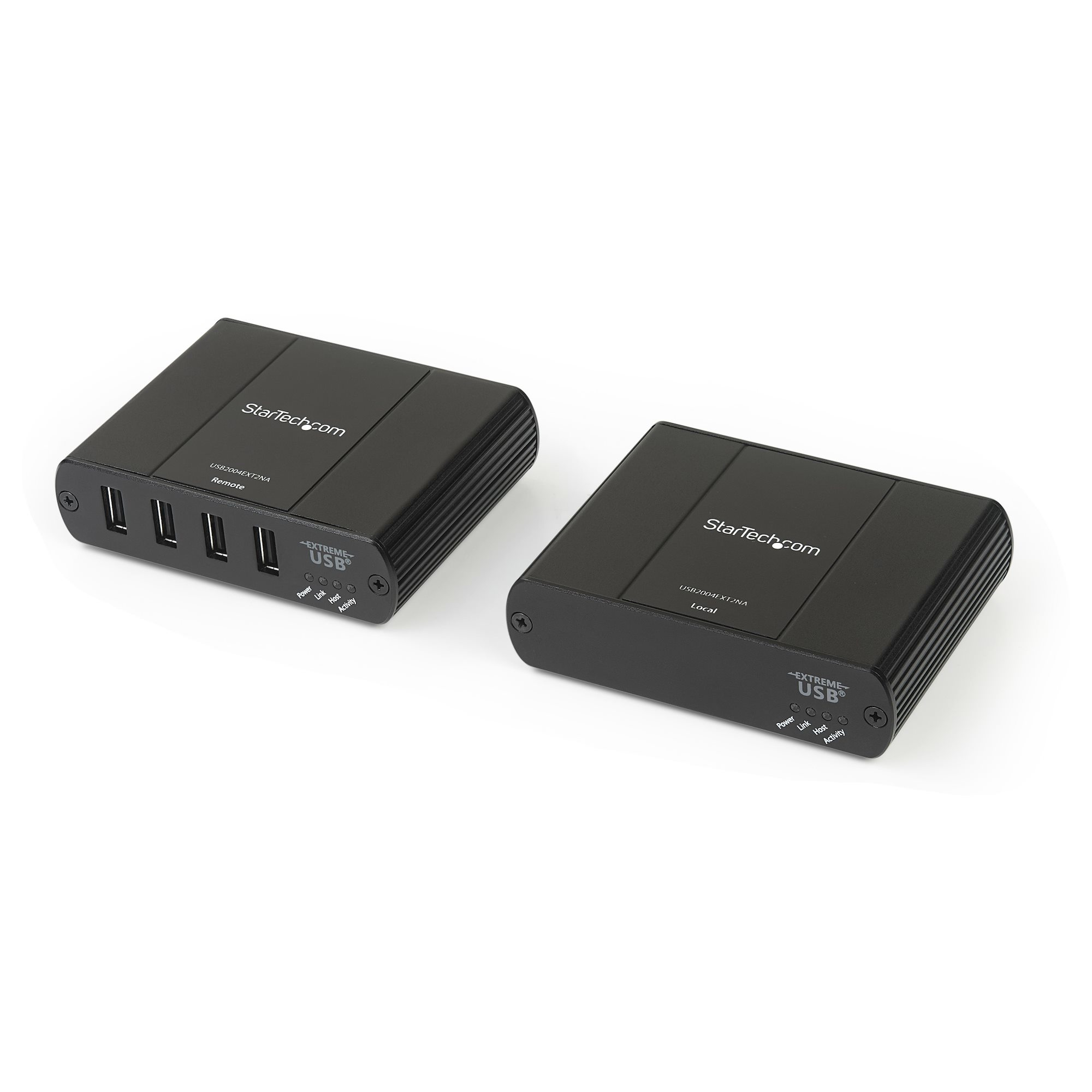

StarTech.com 4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps, 76 mm, 26 mm, 100 mm, 190 g, 195 mm, 245 mm
MSRP
$743.99
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- USB2004EXT2NA
- UPC
- 0065030889681
- Category
- Input/Output Devices
Overview
StarTech.com 4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps. Width: 76 mm, Depth: 26 mm, Height: 100 mm. Cables included: AC, USB. Power consumption (typical): 15 W, Input voltage: 100 - 240 V, Input current: 0.58 A. Master (outer) case width: 420 mm, Master (outer) case length: 570 mm, Master (outer) case height: 260 mm
Key features
- USB 2.0 EXTENDER: Connect 4 USB devices up to 330ft/100m over CAT5e/CAT6 RJ45 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity_x000D_
- CONNECT REMOTE USB DEVICES: The USB extender creates a 4 port hub to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, displays, & CCTV systems at a convenient location_x000D_
- INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection_x000D_
- POWERED USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end provides 5V, 500mA of power per port, while the local transmitter is powered by the PC USB port_x000D_
- PLUG-AND-PLAY: The extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards Compatible with USB 1.0 and USB 1.1 devices_x000D_
- _x000D_
Specifications
Technical details
- Type
- Console transmitter & receiver
- Data transfer rate
- 480 Mbit/s
- Maximum transfer distance
- 100 m
- LED indicators
- Activity, Link, Power
- Cable types supported
- Cat5e, Cat6, Cat7
- Compliance certificates
- RoHS
- Plug and Play
- Yes
- Certification
- CE, FCC, REACH
Ports & interfaces
- USB 2.0 Type-A ports quantity
- 4
- USB 2.0 Type-B ports quantity
- 1
- RJ-45 ports quantity
- 2
Weight & dimensions
- Width
- 76 mm
- Depth
- 26 mm
- Height
- 100 mm
- Weight
- 190 g
- Package width
- 195 mm
- Package depth
- 245 mm
- Package height
- 76 mm
- Package weight
- 934 g
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Packaging content
- Cables included
- AC, USB
- Mounting kit
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
Power
- Power consumption (typical)
- 15 W
- Input voltage
- 100 - 240 V
- Input current
- 0.58 A
- Output voltage
- 24 V
- Output current
- 1 A
- Power plug type
- Type M
Logistics data
- Master (outer) case width
- 420 mm
- Master (outer) case length
- 570 mm
- Master (outer) case height
- 260 mm
- Products per master (outer) case
- 14 pc(s)
