Viewsonic
22IN IR 10-POINT TOUCH DISPLAY

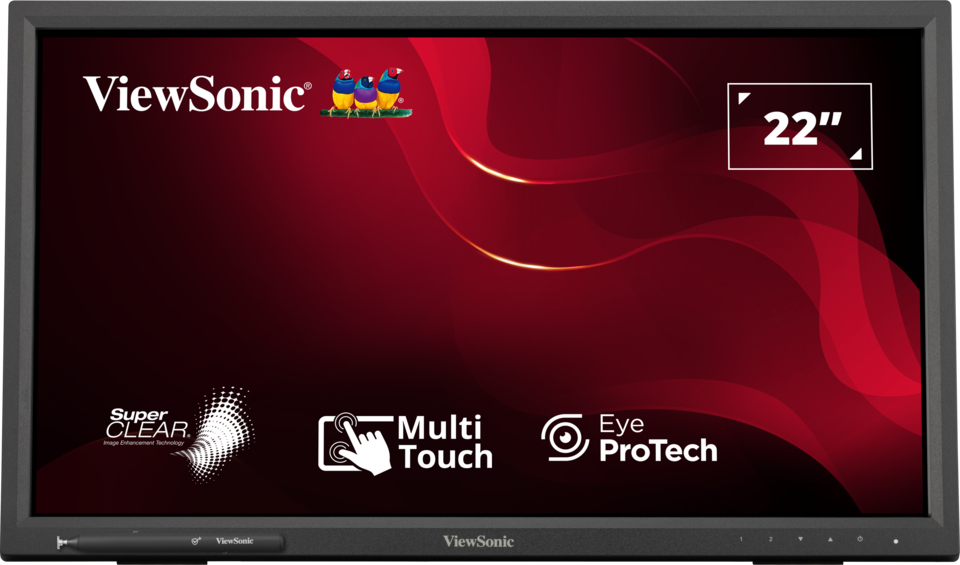

Viewsonic TD2223-2, 55.9 cm (22"), 1920 x 1080 pixels, Full HD, LCD, 6.5 ms, Black
MSRP
$517.46
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- TD2223
- UPC
- 0766907008647
- Category
- Displays
Overview
Viewsonic TD2223-2. Display diagonal: 55.9 cm (22"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Gloss, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black
Key features
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
Specifications
Display
- Display diagonal
- 55.9 cm (22")
- Display resolution
- 1920 x 1080 pixels
- HD type
- Full HD
- Native aspect ratio
- 16:9
- Display technology
- LCD
- Panel type
- VA
- LED backlight
- Yes
- Touchscreen
- Yes
- Touchscreen technology
- Infrared
- Touch technology
- Multi-touch
- Number of simultaneous touchpoints
- 10
- Display brightness (typical)
- 250 cd/m²
- Response time
- 6.5 ms
- Display surface
- Gloss
- Screen shape
- Flat
- Contrast ratio (typical)
- 3000:1
- Contrast ratio (dynamic)
- 20000000:1
- Maximum refresh rate
- 75 Hz
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 16.7 million colours
- Pixel pitch
- 0.249 x 0.241 mm
- Display diagonal (metric)
- 55.9 cm
- Colour depth
- 8 bit
- sRGB coverage (typical)
- 104%
- NTSC coverage (typical)
- 72%
Performance
- NVIDIA G-SYNC
- No
- AMD FreeSync
- No
- Flicker-free technology
- Yes
- Low Blue Light technology
- Yes
Multimedia
- Number of speakers
- 2
- RMS rated power
- 4 W
- Built-in speaker(s)
- Yes
- Built-in camera
- No
Design
- Market positioning
- Office
- Product colour
- Black
- Feet colour
- Black
- Glass thickness
- 2 mm
Ports & interfaces
- Built-in USB hub
- Yes
- USB hub version
- 2.0
- Number of USB Type-B upstream ports quantity
- 1
- USB Type-A downstream ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- DVI port
- Yes
- DVI-D ports quantity
- 1
- HDMI
- Yes
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- Headphone out
- Yes
- Headphone outputs
- 1
- Headphone connectivity
- 3.5 mm
- AC (power) in
- Yes
Ergonomics
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm
- Wall mountable
- Yes
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Height adjustment
- No
- Tilt adjustment
- Yes
- Tilt angle range
- 20 - 40°
- On Screen Display (OSD)
- Yes
Power
- Power consumption (typical)
- 18.5 W
- Power consumption (standby)
- 0.5 W
- Power consumption (max)
- 21.8 W
- AC input voltage
- 100 - 240 V
- Power supply type
- Internal
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 90%
Weight & dimensions
- Width (with stand)
- 519 mm
- Depth (with stand)
- 101 mm
- Height (with stand)
- 329 mm
- Weight (with stand)
- 4.2 kg
- Width (without stand)
- 519 mm
- Depth (without stand)
- 61 mm
- Height (without stand)
- 308 mm
- Weight (without stand)
- 3.7 kg
Packaging data
- Package width
- 580 mm
- Package depth
- 162 mm
- Package height
- 405 mm
- Package weight
- 5.7 kg
Packaging content
- Stand included
- Yes
- Cables included
- AC, Audio, HDMI, USB Type-A to USB Type-B
- Quick start guide
- Yes
Other features
- Weight
- 4.2 kg
- Certification
- cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
Logistics data
- Products per master (outer) case
- 1 pc(s)
- Pallet gross width
- 120 cm
- Pallet gross length
- 100 cm
- Pallet gross height
- 2.15 m
- Harmonized System (HS) code
- 8528521000
