Cyber Power
2200VA/2200W SINE WAVE UPS

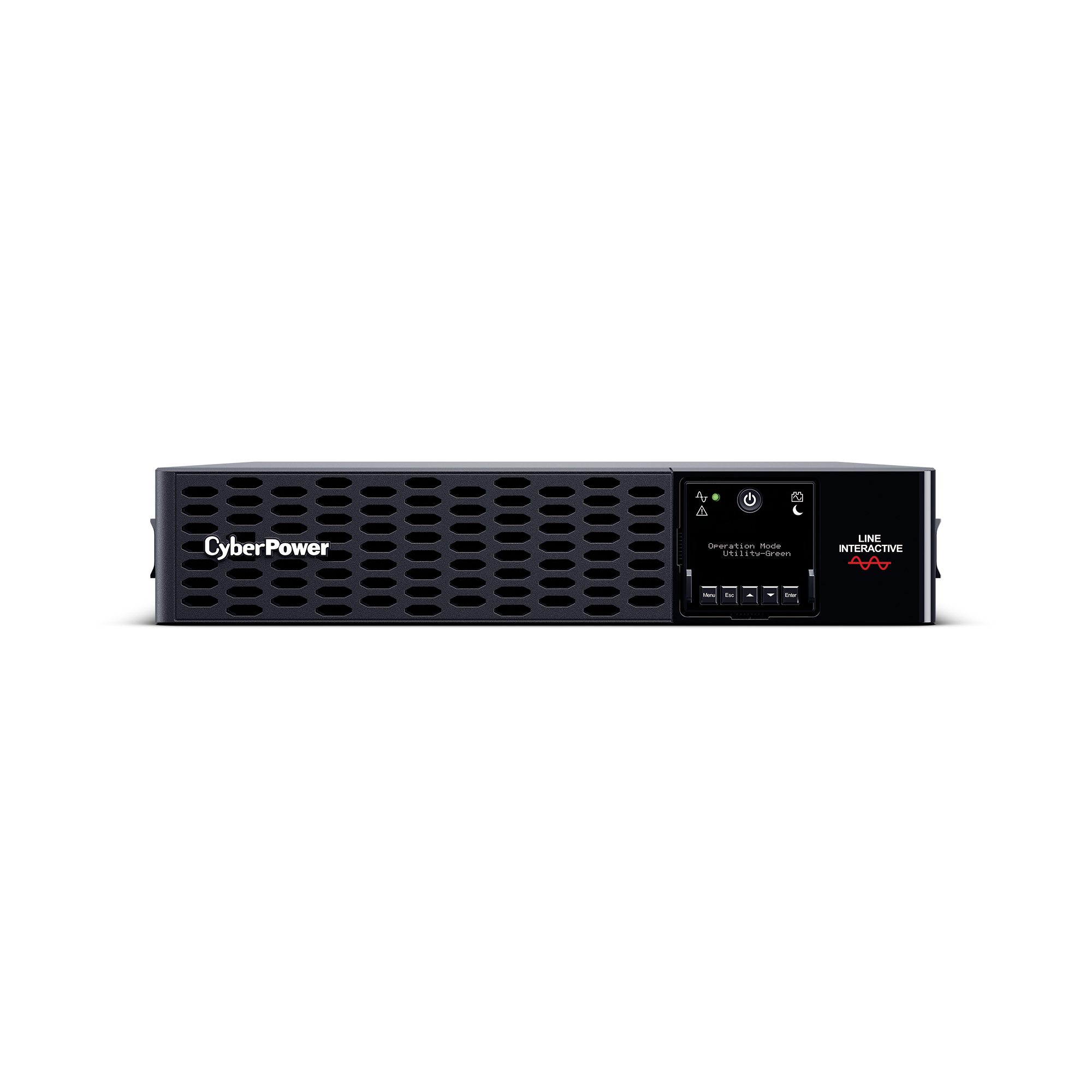

CyberPower PR2200RTXL2UHVAN, Line-Interactive, 2.2 kVA, 2200 W, Sine, 148 V, 288 V
MSRP
$3,005.38
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- PR2200RTXL2UHVAN
- UPC
- 0649532930104
- Category
- Power Protection / UPS
Overview
CyberPower PR2200RTXL2UHVAN. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. Power plug: NEMA L6-20P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 6 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: RoHS
Key features
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 200-240 VAC ± 5%
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Outlet types: 4 × NEMA 6-20R; 2 x NEMA L6-20R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: Yes, pre-installed RMCARD205
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.2 kVA
- Output power
- 2200 W
- Waveform
- Sine
- Input operation voltage (min)
- 148 V
- Input operation voltage (max)
- 288 V
- Input frequency
- 47/63 Hz
- Output operation voltage (min)
- 200 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Automatic Voltage Regulation (AVR)
- Yes
- Maximum current
- 20 A
- Surge energy rating
- 2430 J
- Response time
- 4 ms
- EMI/RFI noise filtering
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
Ports & interfaces
- Power plug
- NEMA L6-20P
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 6 Ah
- Battery voltage
- 12 V
- Number of battery cells
- 8
- Typical backup time at full load
- 5.3 min
- Typical backup time at half load
- 15.2 min
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1260X8
Design
- Form factor
- Rackmount/Tower
- Housing material
- Metal
- Cable length
- 3 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- RoHS
Packaging content
- Cables included
- Input power cable
Safety regulation & standards
- Safety
- CE, UL1778, FCC Class A, VCCI
Weight & dimensions
- Width
- 434 mm
- Depth
- 630 mm
- Height
- 86 mm
- Weight
- 42 kg
Packaging data
- Package width
- 571.5 mm
- Package depth
- 755.6 mm
- Package height
- 266.7 mm
- Package weight
- 50.8 kg
