Startech
1U POWER DISTRIBUTION UNIT WITH

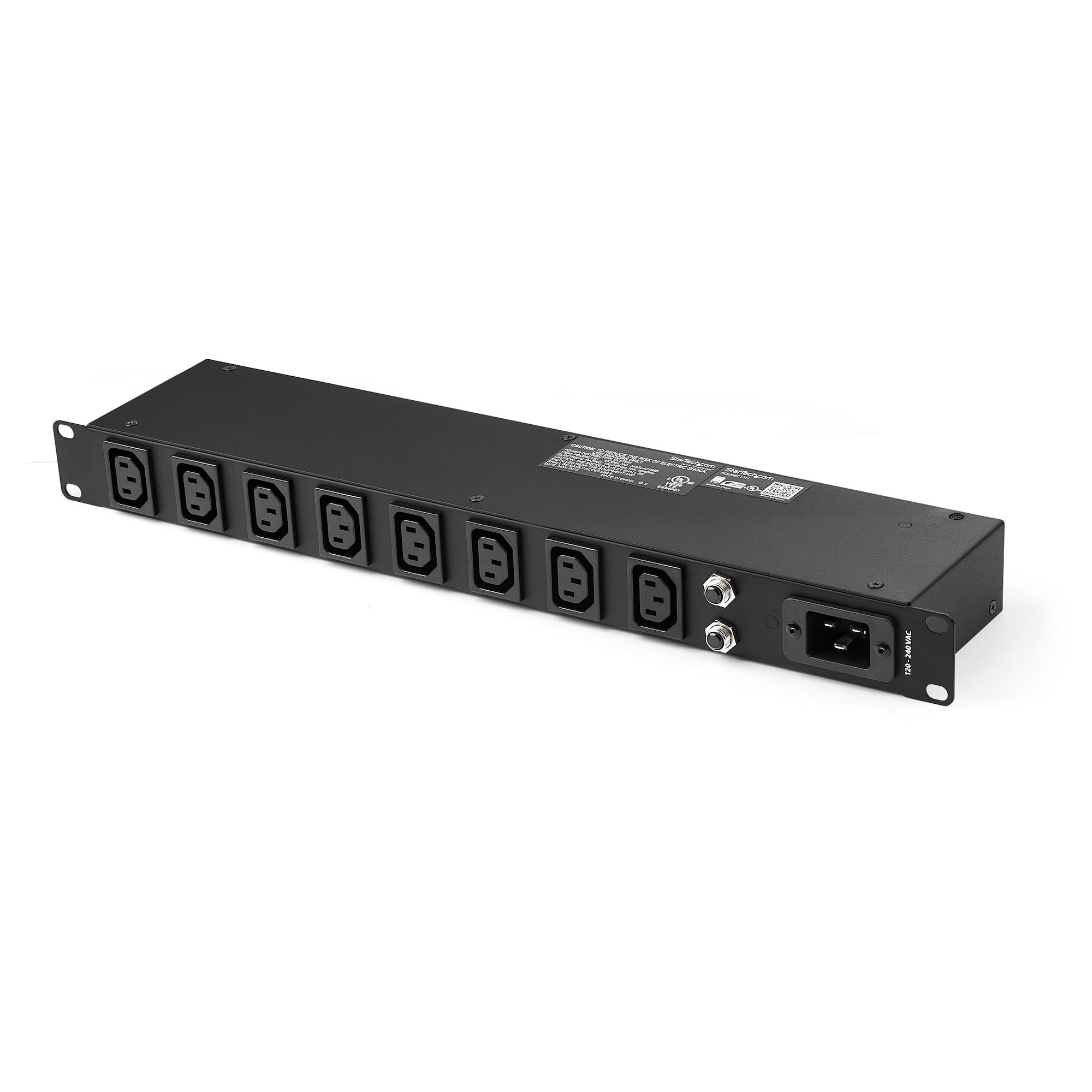

StarTech.com 1U 19 inch 8 Port Rack Mount PDU - IEC C13 Socket Rackmount Power Supply/Strip - Horizontal Server Rack Mountable PDU /Data Center Power Distribution Unit 16A 240V, 1U, Single-phase, Horizontal, Black, 8 AC outlet(s), C13 coupler
MSRP
$112.74
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- PDU08C13H
- UPC
- 0065030865739
- Category
- Power Protection / UPS
Overview
StarTech.com 1U 19 inch 8 Port Rack Mount PDU - IEC C13 Socket Rackmount Power Supply/Strip - Horizontal Server Rack Mountable PDU /Data Center Power Distribution Unit 16A 240V. Rack capacity: 1U, Type: Single-phase, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 3 m. Nominal input voltage: 110 - 240 V, Maximum current: 20 A, Output voltage: 240 V. Compliance certificates: CE
Key features
- 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
- 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
- CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out
- SPECS: 1U 19in. Horizontal PDU / 8x IEC C13 Pwr out / C20 Pwr input (1 phase) / Load cap. @ 120V/16A (1920VA) /Load cap. @240V/20A (4800VA) / 3600 J surge sup. w/breaker /EIA-310D /Mounting H.W. incl.
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty on this 8 port rack mountable power distrubtion unit and free lifetime 24/5 multilingual technical support based in North America
Specifications
Design
- Type
- Single-phase
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C13 coupler
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 110 - 240 V
- Maximum current
- 20 A
- Output voltage
- 240 V
- Load capacity
- 1920 VA
- Maximum total current draw per phase
- 20 A
- Surge energy rating
- 3600 J
- Surge protection
- Yes
Certificates
- Compliance certificates
- CE
Sustainability
- Sustainability certificates
- UL ECOLOGO
Weight & dimensions
- Width
- 480 mm
- Depth
- 100 mm
- Height
- 44 mm
- Weight
- 2 kg
Packaging content
- Cables included
- AC
- Manual
- Yes
- Screws included
- Yes
- Number of screws
- 4
- Screw nuts included
- Yes
- Number of screw nuts
- 4
Packaging data
- Package weight
- 2.4 kg
- Package width
- 190 mm
- Package depth
- 550 mm
- Package height
- 82 mm
Logistics data
- Master (outer) case width
- 425 mm
- Master (outer) case length
- 567 mm
- Master (outer) case height
- 212 mm
- Products per master (outer) case
- 5 pc(s)
