Startech
1PORT USB 2.0 EXTENDER OVER

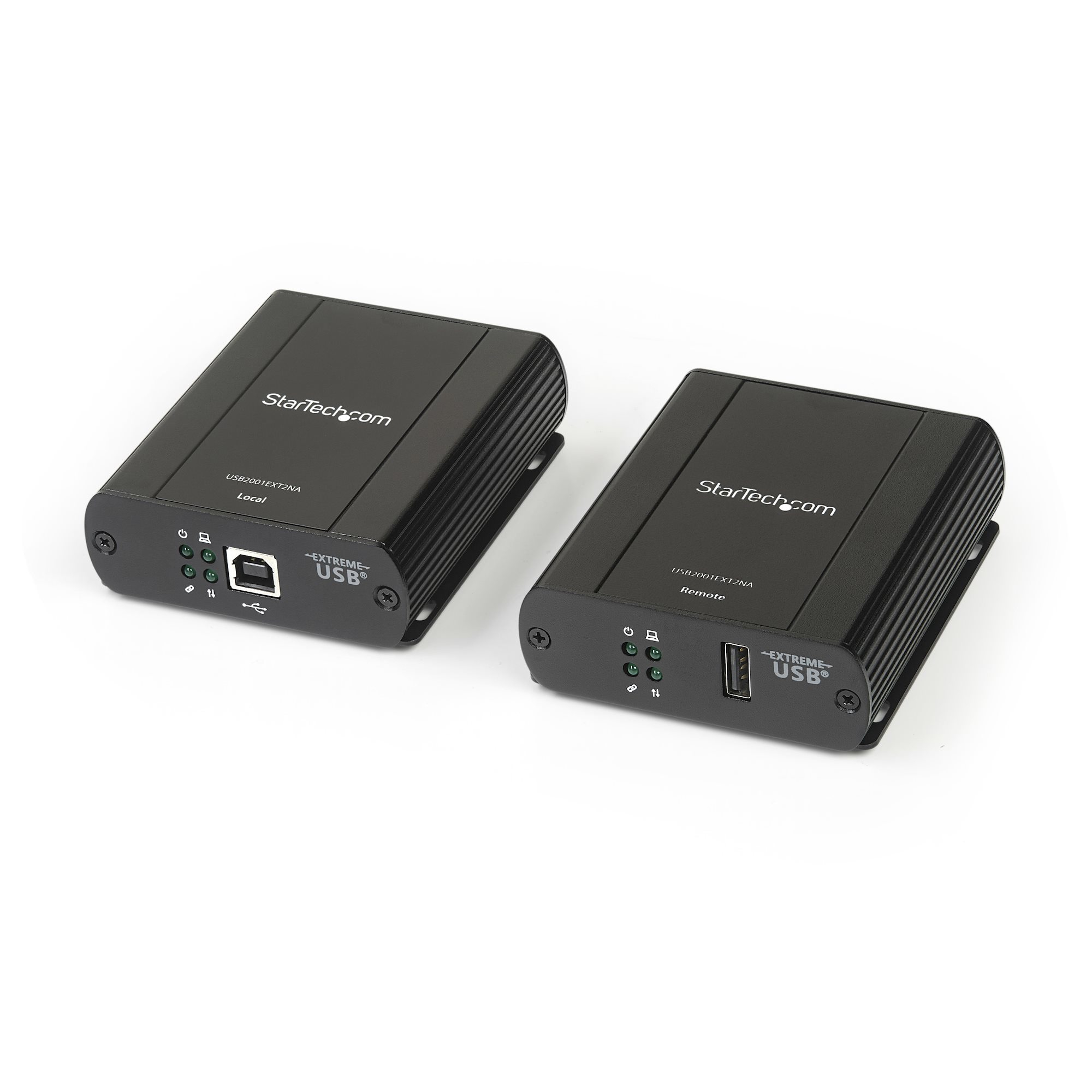

StarTech.com USB 2.0 Extender over Cat5/Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial USB Extender Adapter Kit w/ ESD Protection & Metal Case - Externally Powered - 480 Mbps, 75 mm, 85 mm, 26 mm, 125 g, 195 mm, 243 mm
MSRP
$623.19
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- USB2001EXT2NA
- UPC
- 0065030889674
- Category
- Input/Output Devices
Overview
StarTech.com USB 2.0 Extender over Cat5/Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial USB Extender Adapter Kit w/ ESD Protection & Metal Case - Externally Powered - 480 Mbps. Width: 75 mm, Depth: 85 mm, Height: 26 mm. Cables included: AC, USB. Power consumption (typical): 18 W, Input voltage: 100 - 240 V, Input current: 0.6 A. Master (outer) case width: 406 mm, Master (outer) case length: 558 mm, Master (outer) case height: 270 mm
Key features
- USB EXTENDER: Extend 1 USB 2.0 connection up to 100m (330ft) over CAT5e/CAT6 ethernet network cable w/ data transfer rates up to 480Mbps; LEDs monitor power, activity status, link & host connectivity._x000D_
- CONNECT REMOTE USB DEVICES: USB extenders are ideal to remotely access USB devices like printers, cameras, plotters, keyboard/mouse, laser cutters, displays, or CCTV systems from a convenient location_x000D_
- INDUSTRIAL USB EXTENDER: Built w/ durable extruded aluminum construction for high wear & tear environments w/ mounting brackets incl; provides 8kV/16kV Contact/Air Electrostatic Discharge protection_x000D_
- POWERED USB EXTENDER KIT: The USB extender over Cat5/Cat6 cable (RJ45) incl. a power adapter & provides 5V, 500mA to the remote USB port, while powering the local transmitter from the PC USB port_x000D_
- PLUG-AND-PLAY: The extender features driverless installation & is compatible w/ major operating systems incl. Windows, macOS, Linux; Backwards compatible with USB 1.0 and USB 1.1 devices_x000D_
- _x000D_
Specifications
Technical details
- Type
- Console transmitter & receiver
- Data transfer rate
- 480 Mbit/s
- Maximum transfer distance
- 100 m
- Product colour
- Black
- Housing material
- Aluminium
- LED indicators
- Activity, Link, Power
- Cable types supported
- Cat5e, Cat6, Cat7
- Compliance certificates
- RoHS
- Plug and Play
- Yes
- Certification
- CE, FCC
Ports & interfaces
- USB 2.0 Type-A ports quantity
- 1
- USB 2.0 Type-B ports quantity
- 1
- RJ-45 ports quantity
- 2
- DC-in jack
- Yes
Weight & dimensions
- Width
- 75 mm
- Depth
- 85 mm
- Height
- 26 mm
- Weight
- 125 g
- Package width
- 195 mm
- Package depth
- 243 mm
- Package height
- 76 mm
- Package weight
- 841 g
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 20 - 90%
Packaging content
- Cables included
- AC, USB
- Mounting kit
- Yes
- Quick start guide
- Yes
- AC adapter included
- Yes
Power
- Power consumption (typical)
- 18 W
- Input voltage
- 100 - 240 V
- Input current
- 0.6 A
- Output voltage
- 5 V
- Output current
- 3 A
- Power plug type
- Type C
Logistics data
- Master (outer) case width
- 406 mm
- Master (outer) case length
- 558 mm
- Master (outer) case height
- 270 mm
- Products per master (outer) case
- 14 pc(s)
