Cyber Power

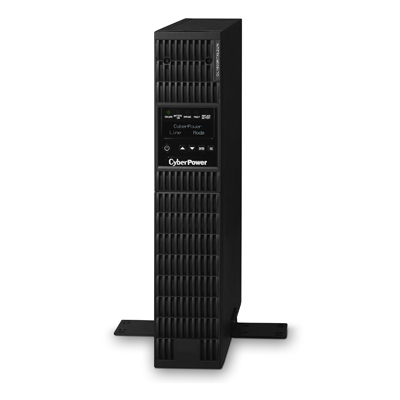

1.5KVA ONLINE UPS 2U SINE LCD
CyberPower OL1500RTXL2UN, Double-conversion (Online), 1.5 kVA, 1350 W, Sine, 60 V, 150 V
MSRP
$2,289.22
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- OL1500RTXL2UN
- UPC
- 0649532611782
- Category
- Power Protection / UPS
Overview
CyberPower OL1500RTXL2UN. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 12 VAh. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Compliance certificates: RoHS
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 1.5 kVA
- Output power
- 1350 W
- Waveform
- Sine
- Input operation voltage (min)
- 60 V
- Input operation voltage (max)
- 150 V
- Input frequency
- 40 - 70 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 125 V
- Surge energy rating
- 1780 J
- Power factor
- 0.9
- Input power factor
- 0.99
- Crest factor
- 3:1
- Output voltage Total Harmonic Distortion (THD)
- 5%
- EMI/RFI noise filtering
- Yes
- Noise level
- 50 dB
- Surge protection
- Yes
- Surge protection features
- Network, Telephone
- Power protection features
- Short circuit
- Audible alarm(s)
- No
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm, Battery replacement
Ports & interfaces
- AC outlet types
- NEMA 5–15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- RS-232 ports
- 1
- Modem (RJ-11) ports
- 2
- Ethernet LAN (RJ-45) ports
- 2
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery capacity
- 12 VAh
- Number of batteries supported
- 3
- Typical backup time at full load
- 3 min
- Typical backup time at half load
- 11 min
- Battery recharge time
- 4 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1290X3L
Design
- Form factor
- Rackmount/Tower
- Housing material
- Steel
- Rack capacity
- 2U
- Cable length
- 3.04 m
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Power, Battery replacement
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
Packaging content
- Rack mount kit
- Yes
- Cables included
- Phone (RJ-11), Serial, USB cable
- Manual
- Yes
Safety regulation & standards
- Safety
- UL1778, CSA C22.2 NO.107.3-05, FCC DOC Class B
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 433 mm
- Depth
- 430 mm
- Height
- 88 mm
- Weight
- 18 kg
Packaging data
- Warranty card
- Yes
- Package width
- 550 mm
- Package depth
- 590 mm
- Package height
- 240 mm
- Package weight
- 24.4 kg
