Tp Link - Physical S

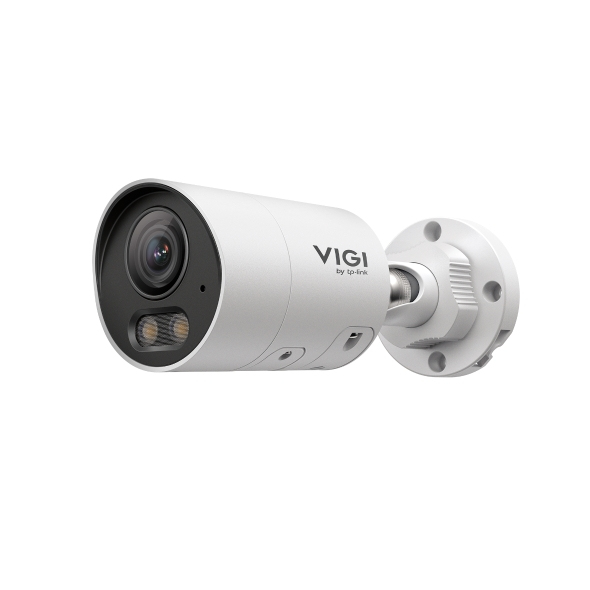

VIGI 4MP OUTDOOR COLORPRO BULLET NETWORK CAMERA
TP-Link InSight S345S, IP security camera, Outdoor, Wired, 120 dB, Ceiling/Wall/Pole, White
MSRP
$240.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- INSIGHT S345S(4MM)
- UPC
- 0810142822930
- Category
- Physical Security
Overview
TP-Link InSight S345S. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.79 mm (1 / 1.79"). Detect distance: 76 m, Observe distance: 29 m, Recognize distance: 14 m
Key features
- AI-ISP Powered Ultra Low-Light Color Night Vision
- 4MP Super-High Definition
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Two-Way Audio
- Smart Video Enhancement Technology
- Flexible Alarm In/Out Devices Integration
- IP67 Weatherproof
- H.265+ Compression Technology
Specifications
Performance
- Type
- IP security camera
- Placement supported
- Outdoor
- Connectivity technology
- Wired
- Wide Dynamic Range (WDR)
- Yes
- Infrared (IR) cut-off filter
- Yes
- Alarm input/output
- Yes
- Dynamic range
- 120 dB
Design
- Form factor
- Bullet
- Mounting type
- Ceiling/Wall/Pole
- Product colour
- White
- Housing material
- Metal
- International Protection (IP) code
- IP67
Camera
- Minimum illumination
- 0.0005 lx
- Angle of rotation
- 360°
- Lens viewing angle, horizontal
- 95°
- Lens viewing angle, vertical
- 51°
- Lens viewing angle, diagonal
- 115°
- Tilt angle range
- 0 - 75°
- Pan range
- 0 - 360°
- Camera shutter speed
- 1/3 - 1/10000 s
Image sensor
- Optical sensor size
- 25.4 / 1.79 mm (1 / 1.79")
- Progressive scan
- Yes
- Sensor type
- CMOS
Lens system
- Number of lenses
- 1
- Detect distance
- 76 m
- Observe distance
- 29 m
- Recognize distance
- 14 m
- Maximum aperture number
- 1
- Identify distance
- 7 m
- Fixed focal length
- 4 mm
Night vision
- Night vision
- Yes
- Night vision distance
- 30 m
- LED type
- IR/White
- Number of illumination LEDs
- 2
- Infra-red wavelength
- 850 nm
Video
- Maximum resolution
- 2688 x 1520 pixels
- Total megapixels
- 4 MP
- Video compression formats
- H.264, H.264+, H.265, H.265+
- Supported graphics resolutions
- 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
- Video streaming
- Yes
- Noise reduction
- Yes
- Noise reduction technology
- 3D noise reduction
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Bit rate
- Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps
- Back Light Compensation (BLC)
- Yes
- Highlight Compensation (HLC)
- Yes
- Region of Interest (ROI) encoding
- Yes
- Smart IR
- Yes
Audio
- Built-in speaker(s)
- Yes
- Audio system
- 2-way
- Signal-to-Noise Ratio (SNR)
- 52 dB
- Built-in microphone
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Fast Ethernet
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
- Wi-Fi
- No
- Bluetooth
- No
Storage
- Built-in HDD
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
Security
- Alarm input channels
- 1
- Alarm output channels
- 1
- Password protection
- Yes
- Video motion detection
- Yes
- Active tampering alarm
- Yes
- IP address filtering
- Yes
- HTTPS encryption
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
- Digest authentication
- Yes
Management features
- Web browser
- Yes
- Cloud-managed
- Yes
Power
- Power source type
- DC, PoE
- DC output voltage
- 12
Operational conditions
- Operating temperature (T-T)
- -30 - 60 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
Weight & dimensions
- Diameter
- 6.6 cm
- Length
- 191 mm
- Weight
- 600 g
Sustainability
- Compliance certificates
- BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Packaging content
- Number of cameras
- 1
- Mounting kit
- Yes
- Manual
- Yes
