THIN MINI-ITX MOTHERBOARD FOR INTEL CELERON QUAD-CORE J6412 NCNR

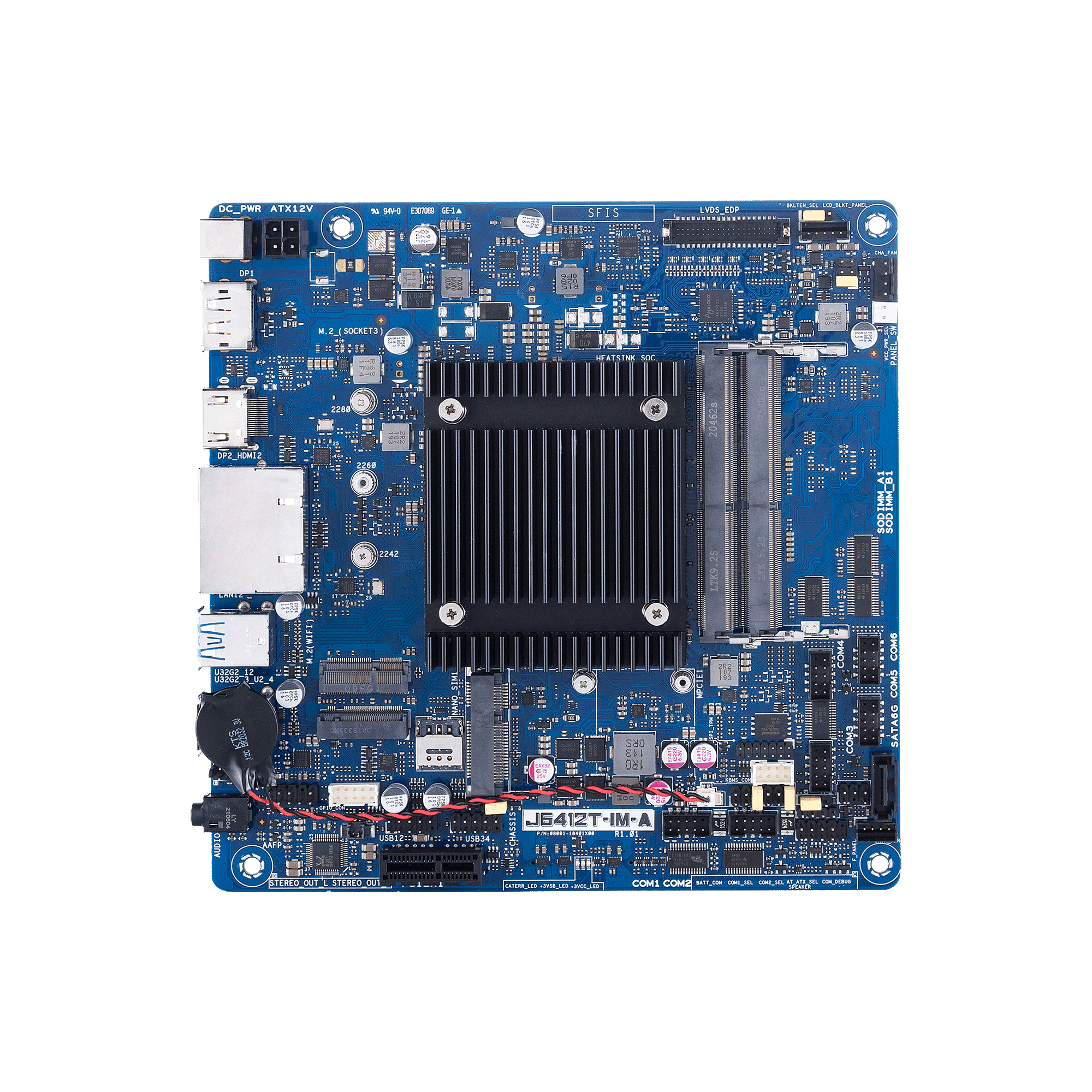

ASUS J6412T-IM-A, Intel, Intel® Celeron®, J6412, DDR4-SDRAM, 32 GB, SO-DIMM
MSRP
$384.99
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- 90ME04B0-M0UCY0
- UPC
- 0195553796293
- Category
- System Components
Overview
ASUS J6412T-IM-A. Processor manufacturer: Intel, Compatible processor series: Intel® Celeron®, Processor model: J6412. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: SO-DIMM. Maximum resolution: 4096 x 2160 pixels. HDMI version: 1.4b. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H
Key features
- Fan-less mini-ITX Industrial MB with Intel Celeron® J6412 processor
- Supports 3 displays configuration by multiple interface: HDMI/DP/LVDS/eDP(optional)
- 7 years of longevity with extended product life cycles
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0–60°C
Specifications
Processor
- Processor manufacturer
- Intel
- Compatible processor series
- Intel® Celeron®
- Processor model
- J6412
- Processor cores
- 4
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 2
- Memory slots type
- SO-DIMM
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 2133,2400,2666,2800,3000,3200 MHz
- Maximum internal memory
- 32 GB
Graphics
- Maximum resolution
- 4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors
- 2
- Number of SATA III connectors
- 1
- Front panel audio connector
- Yes
- Number of chassis fan connectors
- 1
- Chassis intrusion connector
- Yes
- Peripheral (Molex) power connectors (4-pin)
- 1
- TPM connector
- Yes
- Serial port headers
- 6
Rear panel I/O ports
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Ethernet LAN (RJ-45) ports
- 2
- HDMI ports quantity
- 1
- HDMI version
- 1.4b
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.2
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- LAN controller
- Realtek RTL8111H
Features
- Audio chip
- Realtek ALC897
- Motherboard form factor
- mini ITX
- Motherboard chipset family
- Intel
- Linux operating systems supported
- Yes
- Windows operating systems supported
- Windows 10 IoT Enterprise, Windows 10 x64
- Certification
- CE, FCC, VCCI, BSMI, RCM CE-LVD
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
Operational conditions
- Storage temperature (T-T)
- -40 - 85 °C
- Operating temperature (T-T)
- 0 - 60 °C
- Operating relative humidity (H-H)
- 10 - 95%
Weight & dimensions
- Width
- 170 mm
- Depth
- 170 mm
