Tp Link

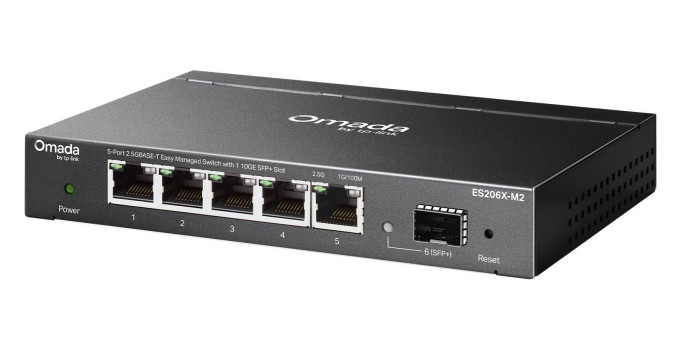

OMADA 5PORT 2.5GBASE-T EASY MANAGED SWITCH WITH 1 10GE SFP+
TP-Link Omada ES206X-M2, Managed, L2, 2.5G Ethernet (100/1000/2500), Desktop/Wall-Mounting
MSRP
$99.99
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- ES206X-M2
- UPC
- 0840460600323
- Category
- Network Devices
Overview
TP-Link Omada ES206X-M2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 45 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE.... Form factor: Desktop/Wall-Mounting
Key features
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- 2.5G Ethernet (100/1000/2500)
- SFP+ module slots quantity
- 1
Network
- Networking standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
- 10G support
- No
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- VLAN support
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN
Data transmission
- Switching capacity
- 45 Gbit/s
- Forwarding rate
- 33.48 Mpps
- MAC address table
- 16000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 10
- Packet buffer memory
- 0.64 MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Design
- Form factor
- Desktop/Wall-Mounting
- Product colour
- Black
- LED indicators
- Yes
Performance
- Flash memory
- 64 MB
- Firmware upgradeable
- Yes
- Mean time between failures (MTBF)
- 1223587 h
Power
- Power source
- AC
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 5.63 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- -5 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 19.21 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 100.7 mm
- Height
- 25.4 mm
- Weight
- 520 g
Certificates
- Certification
- CE, FCC, RoHS
