Allied Telesis
FED COMP 32/64 BIT PCIE ADAPTER
Allied Telesis AT-2911SX/SC-901, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s
MSRP
$689.94
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-2911SX/SC-901
- UPC
- 0767035196619
- Category
- Network Devices
Overview
Allied Telesis AT-2911SX/SC-901. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- PCI Express
- Interface
- Fiber
- Fiber ports quantity
- 1
- Fiber optic connector
- SC
Network
- Maximum data transfer rate
- 1000 Mbit/s
- Networking standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Fiber ethernet cabling technology
- 1000BASE‑ZX
- Jumbo frames support
- Yes
- Quality of Service (QoS) support
- Yes
Design
- Internal
- Yes
- LED indicators
- Yes
- Certification
- UL FCC/EN55022 A TUV EN55024 CE C-TICK VCCI
Power
- Output voltage
- 3.3 V
- Power consumption (typical)
- 9.2 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 87 mm
- Height
- 56 mm
- Weight
- 700 g
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
Other features
- Flow control support
- Yes
- Management protocols
- SNMP
- Link/Act LED
- Yes
Frequently quoted together
More from Allied Telesis in Networking, often quoted on the same project.
Allied Telesis
TAA FEDERAL 8 X 1000SX/LC TO
Allied Telesis MCF3000/8LC, 1000 Mbit/s, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, Stainless steel, LC, Wired
- SKU
- AT-MCF3000/8LC
MSRP
$4,705.39
Allied Telesis
TAA FEDERAL 3SLOT 1RU UP TO 24

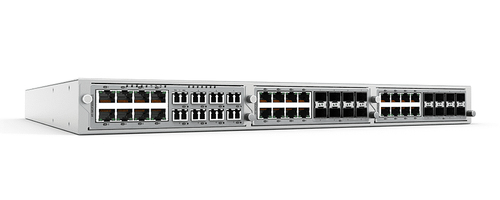

Allied Telesis AT-MCF3300-960, 5A991B4A
