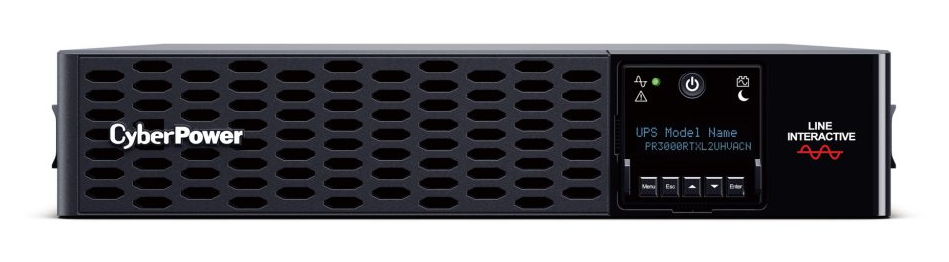

CYBERPOWER PR3000RTXL2UHVACN 2U 4X6-20R 2XL6-20R CLOUD
CyberPower Smart App Sinewave, Line-Interactive, 3 kVA, 3000 W, Sine, 131 V, 302 V
MSRP
$4,371.46
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- PR3000RTXL2UHVACN
- UPC
- 0649532935758
- Category
- Power Protection / UPS
Overview
CyberPower Smart App Sinewave. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: NEMA L6-20P, Power plug: NEMA L6-20P, AC outlets quantity: 8 AC outlet(s). Battery replacement accessibility: End-user, Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5.7 Ah. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Cables included: USB cable, Serial
Key features
- Battery Backup
- Line-Interactive Topology
- Automatic Voltage Regulation (AVR)
- Sine Wave Output
- Battery Equalization Technology
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Waveform
- Sine
- Input operation voltage (min)
- 131 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 47/63 Hz
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Maximum current
- 30 A
- Surge energy rating
- 2430 J
- Response time
- 13 ms
- Heat dissipation
- 192.5 BTU/h
- Power factor
- 1
- EMI/RFI noise filtering
- Yes
- Noise level
- 57.5 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Fault, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- NEMA L6-20P
- Power plug
- NEMA L6-20P
- AC outlets quantity
- 8 AC outlet(s)
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Serial ports quantity
- 1
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 5.7 Ah
- Battery voltage
- 12 V
- Number of batteries supported
- 4
- Typical backup time at full load
- 3.7 min
- Typical backup time at half load
- 11.2 min
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1260X8
Design
- Form factor
- Rackmount/Tower
- Housing material
- Metal
- Rack capacity
- 2U
- Cable length
- 3 m
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Power, Fault, Battery level
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 14999 m
Packaging content
- Cables included
- USB cable, Serial
Weight & dimensions
- Width
- 434 mm
- Depth
- 630 mm
- Height
- 86 mm
- Weight
- 39.7 kg
Packaging data
- Package width
- 5740 mm
- Package depth
- 7645 mm
- Package height
- 2743 mm
- Package weight
- 48.5 kg
