Cyber Power

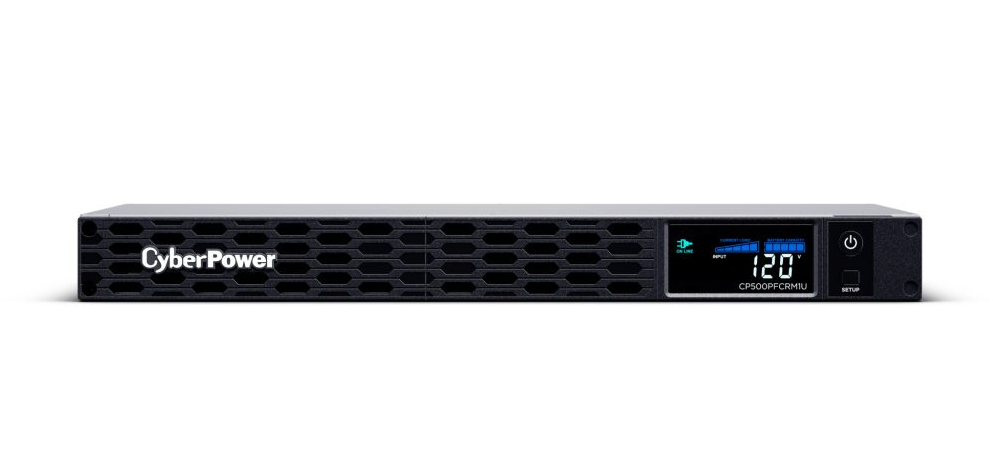

CYBERPOWER CP500PFCRM1U UPS 6 NEMA 5-15R NEMA 5-15P 3YR WTY
CyberPower PFC Sinewave, Line-Interactive, 0.5 kVA, 300 W, Sine, 88 V, 144 V
MSRP
$413.90
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- CP500PFCRM1U
- UPC
- 0649532936878
- Category
- Power Protection / UPS
Overview
CyberPower PFC Sinewave. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: NEMA 5-15P, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery replacement accessibility: End-user, Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah. Form factor: Rackmount, Product colour: Black, Housing material: Metal. Cables included: USB cable
Key features
- Battery Backup
- Surge Protection
- Sine Wave Output
- EMI/RFI Noise Filter
- Multifunction LCD Panel with Color Display
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.5 kVA
- Output power
- 300 W
- Waveform
- Sine
- Input operation voltage (min)
- 88 V
- Input operation voltage (max)
- 144 V
- Input frequency
- 57/63 Hz
- Output operation voltage (max)
- 120 V
- Output frequency
- 60 Hz
- Maximum current
- 15 A
- Surge energy rating
- 1150 J
- Response time
- 8 ms
- Power factor
- 0.6
- EMI/RFI noise filtering
- Yes
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Fault, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- NEMA 5-15P
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 6 AC outlet(s)
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Serial ports quantity
- 1
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 7 Ah
- Battery voltage
- 6 V
- Number of batteries supported
- 2
- Typical backup time at full load
- 2 min
- Typical backup time at half load
- 10.5 min
- Battery recharge time
- 8 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB0670X2
Design
- Form factor
- Rackmount
- Housing material
- Metal
- Rack capacity
- 1U
- Cable length
- 3 m
- Product colour
- Black
- Control type
- Buttons
- Display type
- LCD
- LED indicators
- Power, Fault
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
Packaging content
- Cables included
- USB cable
Weight & dimensions
- Width
- 432 mm
- Depth
- 230 mm
- Height
- 44 mm
- Weight
- 8.15 kg
Packaging data
- Package width
- 5301 mm
- Package depth
- 2799 mm
- Package height
- 1549 mm
- Package weight
- 8.87 kg
