D Link
54PORT GBE LITE L3 SWITCH WITH 2 10GBASE-T 4 SFP+

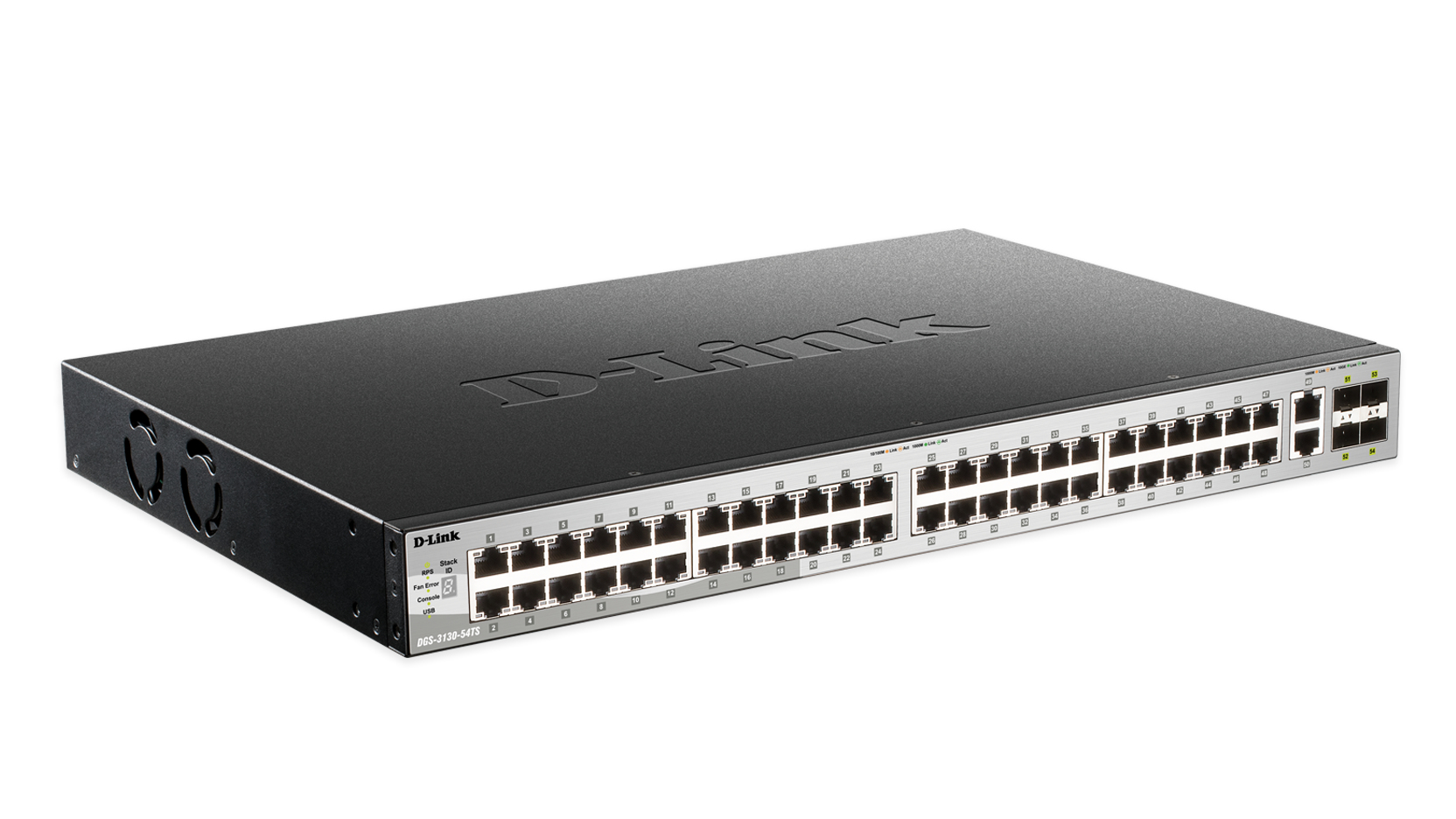

D-Link DGS-3130-54TS, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting
MSRP
$2,764.99
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- DGS-3130-54TS
- UPC
- 0790069435300
- Category
- Network Devices
Overview
D-Link DGS-3130-54TS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 16384 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: AC-in jack. Rack mounting
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- ARP inspection
- Yes
- System event log
- Yes
- MIB support
- RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity
- 4
- Fiber optic connector
- SFP+
- USB 2.0 ports quantity
- 1
- Power connector
- AC-in jack
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
- 10G support
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- Head-of-line (HOL) blocking
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
- Number of VLANs
- 4000
Data transmission
- Switching capacity
- 216 Gbit/s
- Forwarding rate
- 161 Mpps
- MAC address table
- 16384 entries
- Number of queues
- 8
- Jumbo frames support
- Yes
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP server, DHCP snooping, DHCP relay, DHCP client
- Access Control List (ACL)
- Yes
- Access Control List (ACL) egress
- 512
- Access Control List (ACL) ingress
- 2048
- IGMP snooping
- Yes
- Security algorithms
- SNMP, SNMPv3, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
- Loop protection
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- Root protection
- Yes
- Password protection
- Yes
- DoS attack prevention
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
- Multicast support
- Yes
- Multicast features
- Controllable multicast
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Virtual Router Redundancy Protocol (VRRP)
- Yes
- Routing protocols
- RIP
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Product colour
- Black, Grey
- LED indicators
- Yes
- Number of fans
- 2 fan(s)
- Safety
- CB, cUL, BSMI, CCC
Performance
- Physical stacking (units)
- 9
- Virtual stacking (units)
- 32
- Noise level
- 51.9 dB
- Telnet
- Yes
- sFlow
- Yes
- Mean time between failures (MTBF)
- 478258 h
Power
- Redundant power supply (RPS) support
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 50.62 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Other features
- I/O ports
- 2 x 10GBASE-T
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 172.72 BTU/h
Weight & dimensions
- Width
- 440 mm
- Depth
- 290 mm
- Height
- 44 mm
- Weight
- 3.72 kg
Packaging data
- Package width
- 427 mm
- Package depth
- 506 mm
- Package height
- 70 mm
- Package weight
- 4.83 kg
Technical details
- Shipping (inner) case height
- 46 cm
- Shipping (inner) case width
- 19.8 cm
- Shipping (inner) case length
- 52.4 cm
- Shipping (inner) case net weight
- 9.66 kg
- Products per shipping (inner) case
- 2 pc(s)
- Pallet gross weight (air)
- 522.6 kg
- Master (outer) cases per pallet (air)
- 48 pc(s)
- Products per pallet (air)
- 96 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross width
- 120 cm
- Pallet height (air)
- 197.5 cm
- Pallet gross weight (sea)
- 522.6 kg
- Master (outer) cases per pallet (sea)
- 48 pc(s)
- Products per pallet (sea)
- 96 pc(s)
- Pallet height (sea)
- 197.5 cm
- Shipping (inner) case gross weight
- 10.5 kg
Certificates
- Certification
- FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Logistics data
- Harmonized System (HS) code
- 85176990
