D Link
24-PORT 1G POE CLOUD MNGD L2 24 PORT 1G 24 X POE 4 SFP 370W

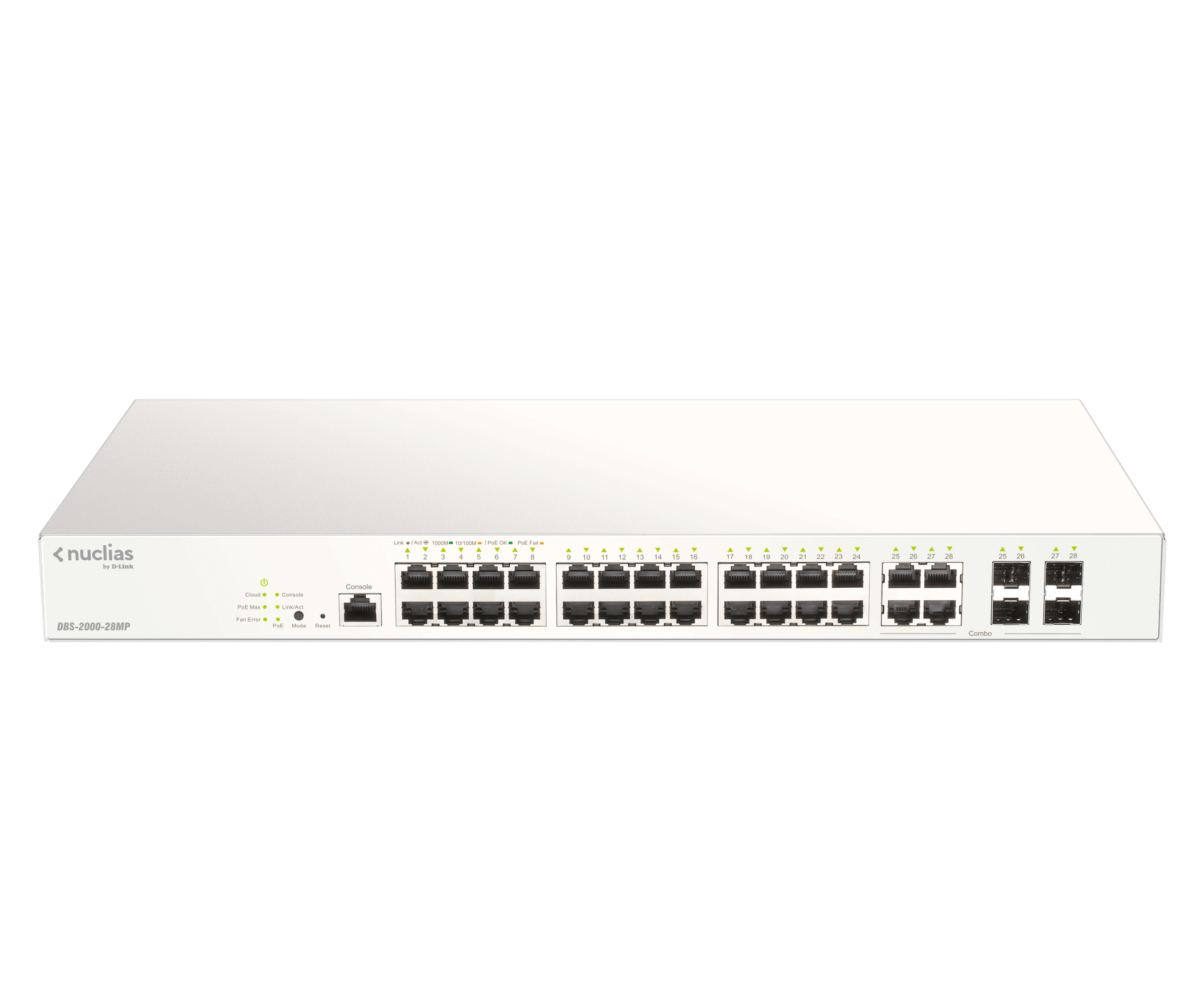

D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
MSRP
$1,064.99
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- DBS-2000-28MP
- UPC
- 0790069442940
- Category
- Network Devices
Overview
D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3at. Rack mounting
Key features
- 24 x 10/100/1000BASE-T PoE ports
- 4 x 10/100/1000BASE-T ports
- 370W PoE power budget
- Supports IEEE 802.3at PoE
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 4
- Console port
- RJ-45
Network
- Networking standards
- IEEE 802.3ad, IEEE 802.3at
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Link aggregation
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
Data transmission
- Switching capacity
- 56 Gbit/s
- Forwarding rate
- 41.7 Mpps
- Packet buffer memory
- 4.1 MB
Security
- IGMP snooping
- Yes
- Security algorithms
- WPA, WPA2
Design
- Rack mounting
- Yes
- Product colour
- Grey
- LED indicators
- Yes
Performance
- Built-in processor
- Yes
- Processor frequency
- 500 MHz
- Memory type
- DDR3-SDRAM
- Internal memory
- 256 MB
- Flash memory
- 32 MB
- Mean time between failures (MTBF)
- 277967 h
Power
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 446.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 370 W
Operational conditions
- Operating temperature (T-T)
- -5 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 1500 m
- Heat dissipation
- 1521.99 BTU/h
Weight & dimensions
- Width
- 440 mm
- Depth
- 250 mm
- Height
- 44 mm
- Weight
- 3.94 kg
Packaging data
- Package width
- 365 mm
- Package depth
- 521 mm
- Package height
- 92 mm
- Package weight
- 5.13 kg
Technical details
- Shipping (inner) case height
- 39.3 cm
- Shipping (inner) case width
- 29.5 cm
- Shipping (inner) case length
- 53.9 cm
- Shipping (inner) case net weight
- 15.4 kg
- Products per shipping (inner) case
- 3 pc(s)
- Pallet gross weight (air)
- 409.5 kg
- Master (outer) cases per pallet (air)
- 24 pc(s)
- Products per pallet (air)
- 72 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross width
- 120 cm
- Pallet height (air)
- 131.4 cm
- Pallet gross weight (sea)
- 670 kg
- Master (outer) cases per pallet (sea)
- 40 pc(s)
- Products per pallet (sea)
- 120 pc(s)
- Pallet height (sea)
- 2.1 m
- Shipping (inner) case gross weight
- 16.2 kg
Logistics data
- Harmonized System (HS) code
- 85176990
