Allied Telesis
10G X2 PCIE X8

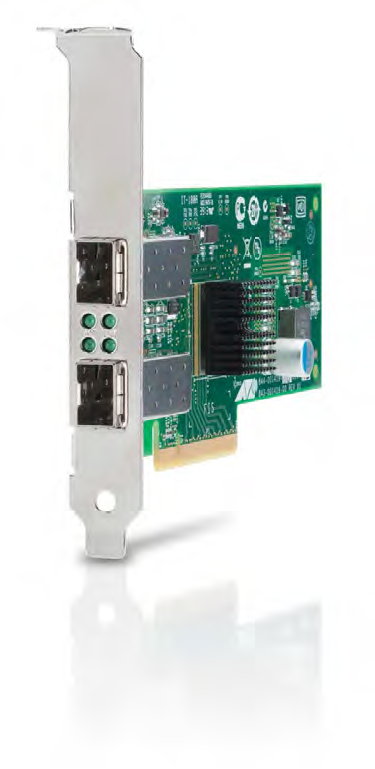

Allied Telesis AT-ANC10S/2-901, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s
MSRP
$1,183.94
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-ANC10S/2-901
- UPC
- 0767035201818
- Category
- Network Devices
Overview
Allied Telesis AT-ANC10S/2-901. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- PCI Express
- Interface
- Fiber
- Fiber ports quantity
- 2
- Fiber optic connector
- LC
- PCI version
- 2.0
Network
- Maximum data transfer rate
- 10000 Mbit/s
- Networking standards
- IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.2, IEEE 802.3ad
Design
- Component for
- Server
- Internal
- Yes
- LED indicators
- Yes
- Certification
- CE, UL, FCC/EN55022 Class B, TUV, EN55024, C-TICK, VCCI
Power
- Output voltage
- 3.3-12 V
- Power consumption (typical)
- 6 W
System requirements
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 160 mm
- Height
- 68.9 mm
- Weight
- 78 g
Packaging content
- Quick installation guide
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
