Allied Telesis

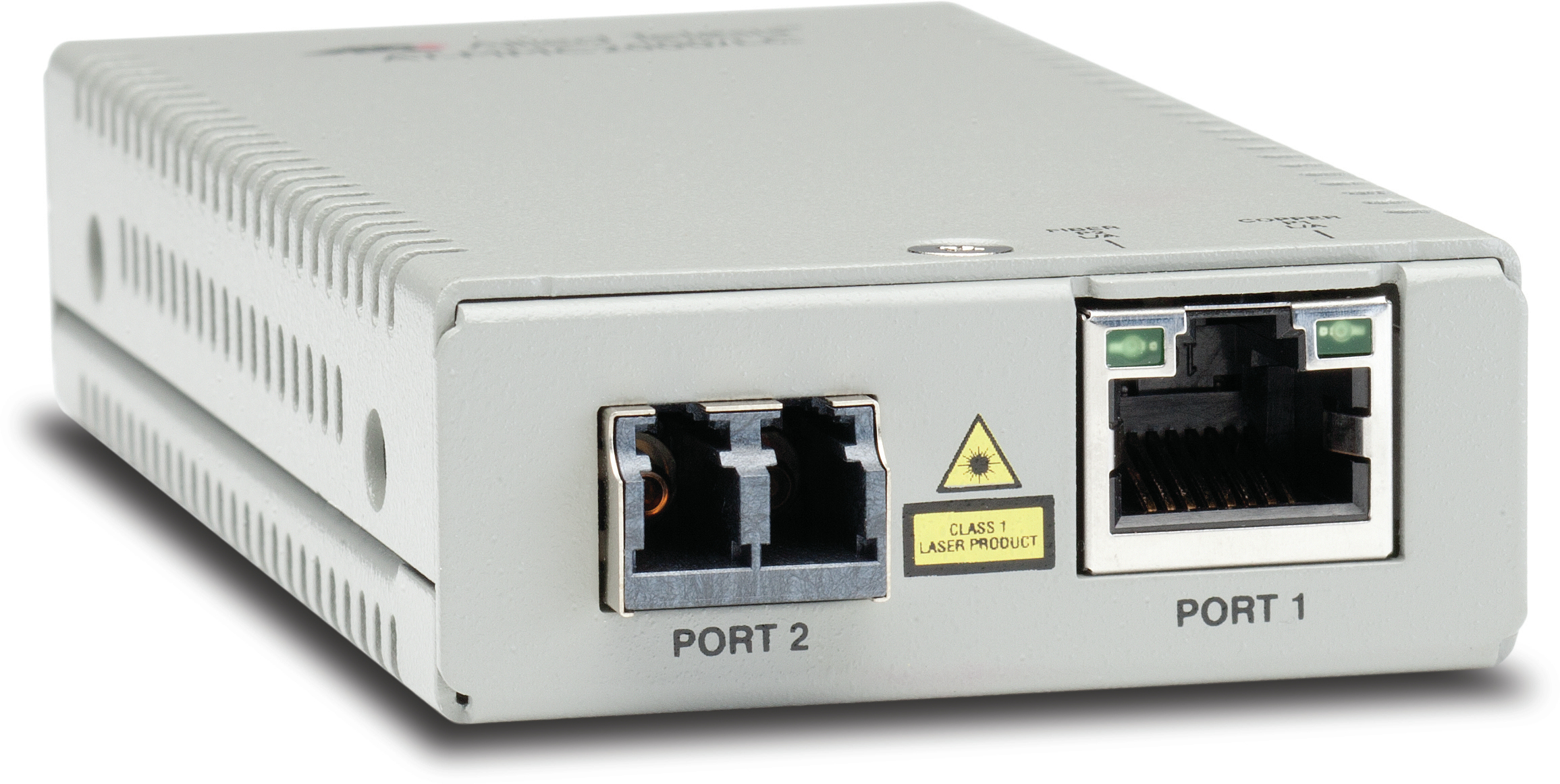

10/100TX TO 100FX/LC MM MEDIA
Allied Telesis AT-MMC200/LC-960, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.1Q, Fast Ethernet, 10,100 Mbit/s
MSRP
$438.80
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- AT-MMC200/LC-960
- UPC
- 0767035218663
- Category
- Network Devices
Overview
Allied Telesis AT-MMC200/LC-960. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Tx power (min): -20 dBmW. LED indicators: Activity, Link, Product colour: Grey. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.14 A, Power consumption (typical): 1.7 W
Key features
- Convert speed as well as media type
- 2K MAC address tables
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Auto Negotiation and Auto MDI/MDIX on copper port
- IEEE support on copper
- Far End Fault on Fiber
- 10K byte Jumbo packets
- Link/Activity LED per port
- Smart MissingLink
- Fixed SC/ST/LC or SFP (100MB or 1000MB) optics
- 12VDC power supply
- Wall-mountable using MMCWLMT
- Locking power supply jack to prevent accidental power disconnects
- Available in Trade Agreement Act (TAA) models
Specifications
Network
- Maximum data transfer rate
- 100 Mbit/s
- Converter input interface
- 100Base-TX
- Converter output interface
- 100Base-FX
- Networking standards
- IEEE 802.1Q
- Ethernet interface type
- Fast Ethernet
- Ethernet LAN data rates
- 10,100 Mbit/s
- Fiber ethernet cabling technology
- 1000BASE‑SX
- Jumbo frames support
- Yes
- VLAN support
- Yes
- Auto MDI/MDI-X
- Yes
- Store-and-forward
- Yes
- Duplex system
- Full
Performance
- Maximum transfer distance
- 2000 m
- Wavelength
- 1310 nm
- Tx power (min)
- -20 dBmW
- Tx power (max)
- -14 dBmW
- Rx power (min)
- -32 dBmW
Features
- Internal
- No
- LED indicators
- Activity, Link
- Product colour
- Grey
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 2
- Fiber optic connector
- LC
Power
- Input voltage
- 12 V
- Input current
- 0.14 A
- Power consumption (typical)
- 1.7 W
- Power over Ethernet (PoE)
- Yes
Weight & dimensions
- Width
- 56 mm
- Depth
- 101.6 mm
- Height
- 21.8 mm
- Weight
- 170 g
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -15 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
Packaging content
- User guide
- Yes
- Manual
- Yes
- Quick installation guide
- Yes
Certificates
- Safety
- FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
- Certification
- CE, EN55024, EN61000-3-2, EN61000-3-3
Logistics data
- Harmonized System (HS) code
- 85176990
