APC by Schneider Electric

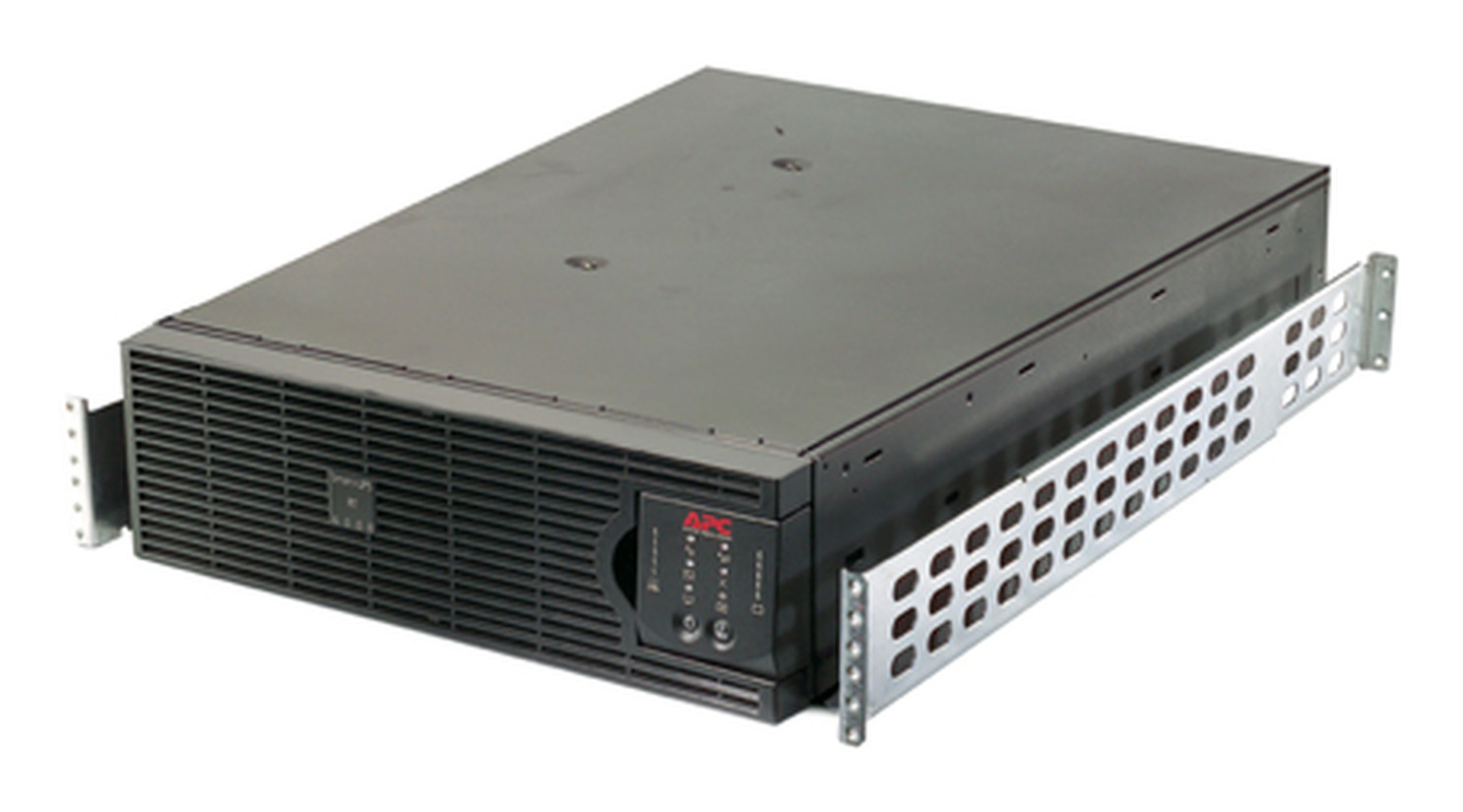

SMART-UPS RT 6000VA RM
APC Smart-UPS RT 6000VA, Double-conversion (Online), 6 kVA, 4200 W, Sine, 85 V, 236 V
MSRP
$11,300.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- SURTD6000RMXLP3U
- UPC
- 0731304258827
- Category
- Power Protection / UPS
Overview
APC Smart-UPS RT 6000VA. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 4200 W. AC outlet types: NEMA 5-20R, NEMA L6-30R, NEMA L14-30R, Power plug: NEMA L14-30P, AC outlets quantity: 6 AC outlet(s). Battery technology: Lead-Acid, Number of batteries included: 2 pc(s), Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Certification: CSA,FCC Part 15 Class A,UL 1778
Key features
- Replacement battery (1) is available
- 6kVA/4.2kW double-conversion on-line pure sine wave 3U rackmount UPS
- Rack/Tower convertible (rail kit included)
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 6 kVA
- Output power
- 4200 W
- Waveform
- Sine
- Input operation voltage (min)
- 85 V
- Input operation voltage (max)
- 236 V
- Input frequency
- 50/60 Hz
- Output frequency
- 50/60 Hz
- Output voltage regulation
- 5%
- Surge energy rating
- 480 J
- Heat dissipation
- 1780 BTU/h
- Efficiency
- 90%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
Ports & interfaces
- AC outlet types
- NEMA 5-20R, NEMA L6-30R, NEMA L14-30R
- Power plug
- NEMA L14-30P
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- Network card slot
- Yes
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Lead-Acid
- Number of batteries included
- 2 pc(s)
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 2.5 h
- Replacement battery cartridge
- APCRBC140
Design
- Form factor
- Rackmount
- Rack capacity
- 3U
- Cable length
- 3.05 m
- Product colour
- Black
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Certification
- CSA,FCC Part 15 Class A,UL 1778
Packaging content
- Rack mount kit
- Yes
- Management card included
- Yes
- Manual
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 660 mm
- Height
- 130 mm
- Weight
- 58.1 kg
Packaging data
- Package width
- 980 mm
- Package depth
- 603 mm
- Package height
- 347 mm
- Package weight
- 72.3 kg
