APC by Schneider Electric

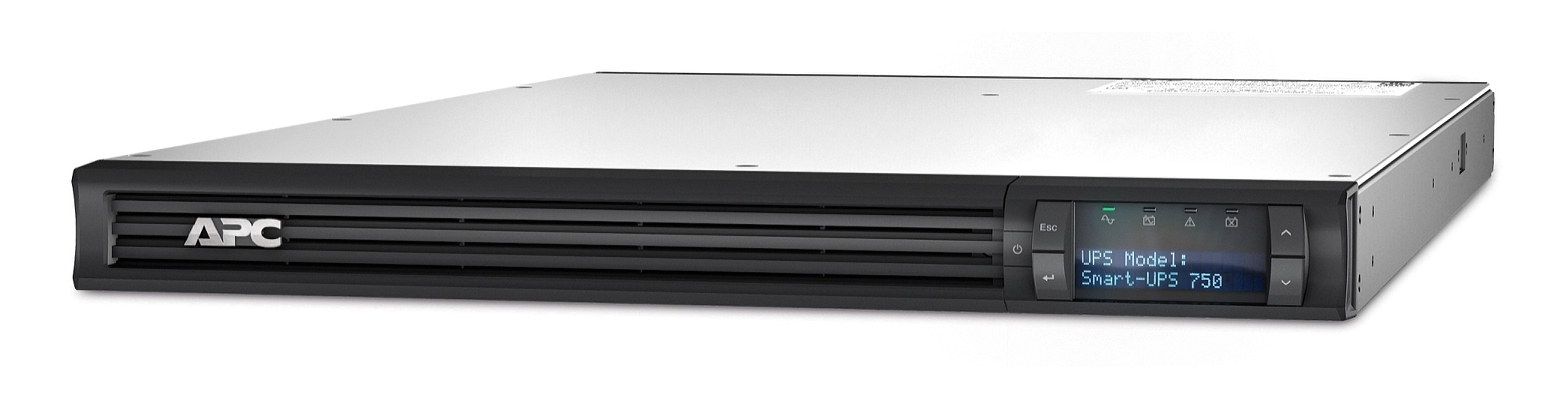

SMART-UPS 750VA LCD 120V 1U
APC SMT750RM1U, Line-Interactive, 0.75 kVA, 600 W, Sine, 120 V, 120 V
MSRP
$1,050.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- SMT750RM1U
- UPC
- 0731304452461
- Category
- Power Protection / UPS
Overview
APC SMT750RM1U. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 600 W. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 4 AC outlet(s). Battery technology: Lead-Acid, Battery life (max): 5 year(s), Battery recharge time: 5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Certification: CSA
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.75 kVA
- Output power
- 600 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 120 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 120 V
- Output frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Maximum current
- 6.25 A
- Surge energy rating
- 540 J
- Response time
- 8 ms
- Heat dissipation
- 88 BTU/h
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Noise level
- 46 dB
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm
Ports & interfaces
- AC outlet types
- NEMA 5-15R
- Power plug
- NEMA 5-15P
- AC outlets quantity
- 4 AC outlet(s)
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-A
- Serial interface
- Yes
- Serial ports quantity
- 1
- SmartSlot
- Yes
Battery
- Battery technology
- Lead-Acid
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 5 h
Design
- Form factor
- Rackmount
- Rack capacity
- 1U
- Cable length
- 2.4 m
- Product colour
- Black
- Display type
- LCD
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Certification
- CSA
Packaging content
- Manual
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 502 mm
- Height
- 44 mm
- Weight
- 15.8 kg
Packaging data
- Package width
- 440 mm
- Package depth
- 502 mm
- Package height
- 44 mm
- Package weight
- 15.8 kg
