APC by Schneider Electric

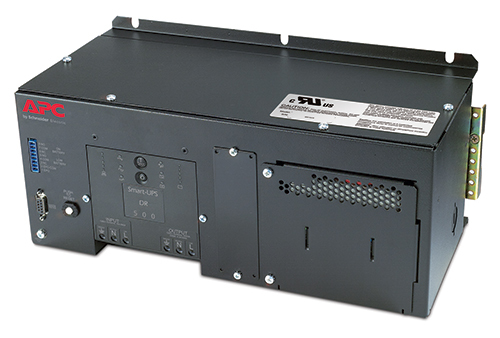

500VA 120V DIN RAIL PANEL MOUNT
APC SUA500PDR-S, 0.5 kVA, 320 W, 75 V, 154 V, 47/63 Hz, 540 J
MSRP
$679.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- SUA500PDR
- UPC
- 0731304289982
- Category
- Power Protection / UPS
Overview
APC SUA500PDR-S. Output power capacity: 0.5 kVA, Output power: 320 W, Input operation voltage (min): 75 V. AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7.4 min, Typical backup time at half load: 21 min. Product colour: Black, Display type: LED. Compliance certificates: RoHS
Specifications
Features
- Output power capacity
- 0.5 kVA
- Output power
- 320 W
- Input operation voltage (min)
- 75 V
- Input operation voltage (max)
- 154 V
- Input frequency
- 47/63 Hz
- Surge energy rating
- 540 J
- Efficiency
- 94%
Ports & interfaces
- AC outlets quantity
- 3 AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Number of batteries supported
- 1
- Typical backup time at full load
- 7.4 min
- Typical backup time at half load
- 21 min
- Battery recharge time
- 2 h
Design
- Product colour
- Black
- Display type
- LED
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 362 mm
- Depth
- 171 mm
- Height
- 148 mm
- Weight
- 12.9 kg
Packaging data
- Package width
- 297 mm
- Package depth
- 481 mm
- Package height
- 297 mm
- Package weight
- 13.3 kg
