24INCH CAPACITIVE TOUCH (10PTS)

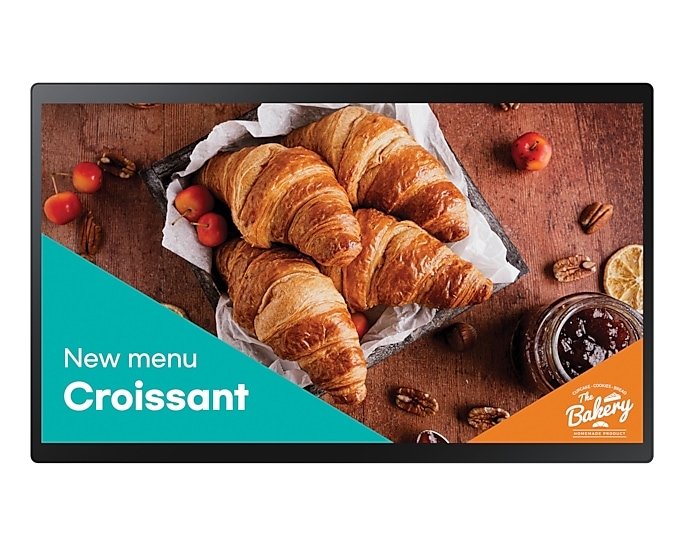

Samsung QB24C-T, Digital signage flat panel, 60.5 cm (23.8"), LED, 1920 x 1080 pixels, Wi-Fi
MSRP
$950.00
Quantity
Get a real, competitive price from a Dataworld account manager, usually the same day.
View your quote requestProduct identifiers
- SKU
- LH24QBCTBGCXZA
- UPC
- 0887276811925
- Category
- Displays
Overview
Samsung QB24C-T. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Tizen 7.0. Product colour: Black
Key features
- Multi-touch
- Compact design
- Home UI
Specifications
Display
- Panel type
- ADS
- Display diagonal
- 60.5 cm (23.8")
- Display technology
- LED
- Display resolution
- 1920 x 1080 pixels
- Display brightness
- 250 cd/m²
- HD type
- Full HD
- Touchscreen
- Yes
- Touchscreen technology
- Capacitive
- Multi-touch
- Yes
- Response time
- 14 ms
- Contrast ratio (typical)
- 1000:1
- Dynamic contrast ratio marketing name
- Mega Contrast
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.2745 x 0.2745 mm
- Horizontal scan range
- 56 - 84.5 kHz
- Vertical scan range
- 48 - 75 Hz
- Haze rate
- 25%
- RGB colour space
- NTSC
Ports & interfaces
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- HDMI input ports quantity
- 1
- DVI port
- No
- USB port
- Yes
- USB ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- RS-232 interface
- Yes
- Infrared data port
- Yes
- Remote (IR) input
- 1
Design
- Product design
- Digital signage flat panel
- Placement supported
- Indoor
- Product colour
- Black
- Screen shape
- Flat
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm
Performance
- Purpose
- Universal
- HDCP
- Yes
- HDCP version
- 2.2
Power
- Power consumption (typical)
- 38.5 W
- Power consumption (sleep)
- 0.5 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
Computer system
- Computer system
- Yes
- Computer system type
- System on Chip (SoC)
- Built-in processor
- Yes
- Operating system installed
- Tizen 7.0
Weight & dimensions
- Display width
- 547.9 mm
- Display depth
- 34.6 mm
- Display height
- 334.4 mm
- Display weight
- 4 kg
Packaging data
- Package width
- 620 mm
- Package depth
- 122 mm
- Package height
- 419 mm
- Package volume
- 5200 cm³
Packaging content
- Cables included
- Power
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
Network
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
Technical details
- Sustainability certificates
- EPEAT Bronze
- Compliance certificates
- CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI
